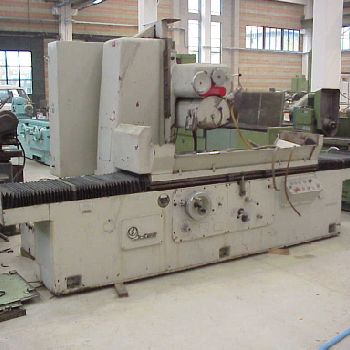

Jotes SPD 30B Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Jotes |
| Model: | SPD 30B |
| Description: | Technical data |Work table mm 1000x300 |Longitudinal stroke mm 1000 |Cross stroke mm 350 |Table distance - grinding wheel center mm 575 |Wheel dimensions mm 350x63x127 |Turns of the G.min Mola. 1400-2800 |Table translation speed mt / min 2--30 |Speed of translation of the head of the wheel mt / min 0,5 - 4,5 |Motor power wheel Kw 7,5 |Total installed power Kw 8.5 |Weight 5000 Kg |Overall dimensions mm 4000x2060x2260 |RE00447file1.xls |Non-binding data to be verified / Data must be verify |Standard equipment |Magnetic piano 1000x300 |Cooling tank |
| Technical Specifications: | Max. grinding length: 1000.0 mm Grinding diameter: 350.0 mm CNC: No Spindle motor power: 7.5 kW Length x width x height: 4000.0 mm × 2060.0 mm × 2260.0 mm Weight: 5000.0 kg State: good At local norms: --------- Status: visible |
