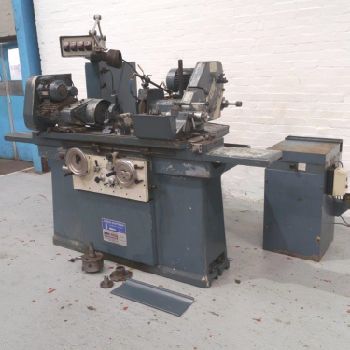

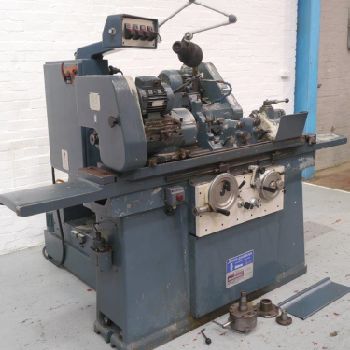

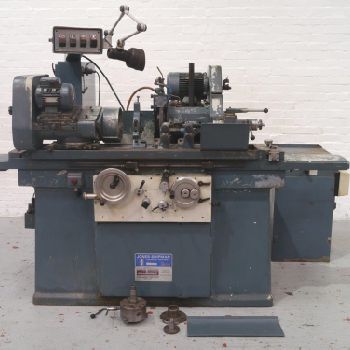

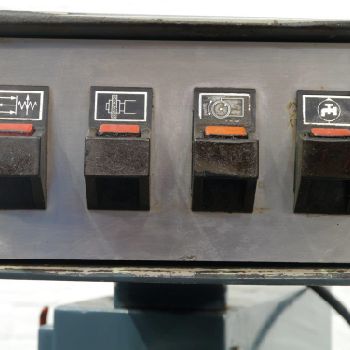

Jones & Shipman 1300 Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Jones & Shipman |
| Model: | 1300 |

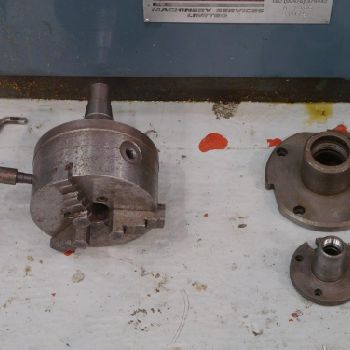

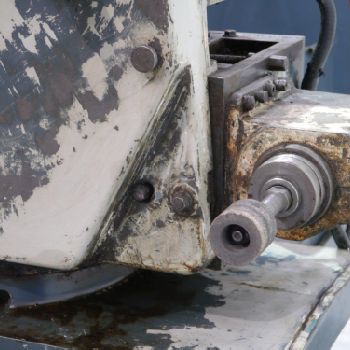

| Description: | Capacity 10" swing x 27 between centres / 254mm x 685mm |Table swivels 16 degrees 0 16 degrees |Table traverse speed 3 - 144 / 76mm - 3657mm per min |Work head input 415/3/50 0.75 kw |Work head speeds 40 - 320 rpm |Work head swivels 10 - 0 -90 degrees |Wheel head input 415/3/50 4 kw |Wheel head cross feed 0.0002 - 0.0012 / 0.005mm - 0.030mm |Nominal stone size 12 / 304mm diameter x 1.1/4 / 31.75mm face |Internal grinding attachment input yes |Fitted with 2 x 2 point steadies, wheel dresser, 160mm magnetic chuck, 160 mm 3 jaw chuck. |Length 8’ 2 / 2.49m |Width 4’ 4 / 1.32m |Height 5’ 10 / 1.78m |Nett weight actual 2,340 Kgs / 2.30 Tons |
| Technical Specifications: | Max. grinding length: 685.0 mm Exter: Yes Inter: Yes CNC: No Max. swing diameter: 254.0 mm Max. wheel speed: 320 rpm Spindle motor power: 0.75 kW Length x width x height: 2490.0 mm × 1320.0 mm × 1780.0 mm Weight: 2340.0 kg State: good At local norms: --------- |
