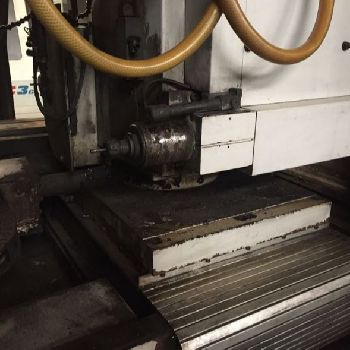

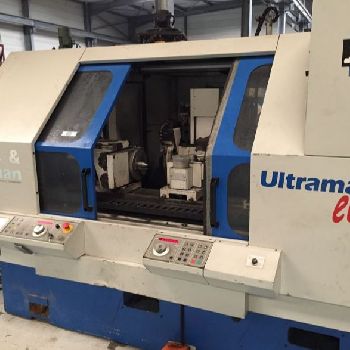

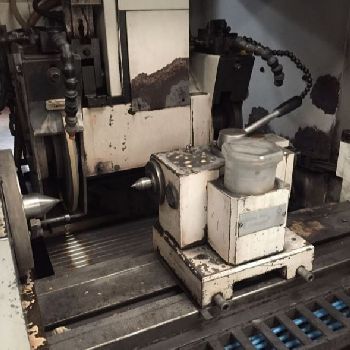

JONES & SHIPMAN ULTRAMAT EASY 650 Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Jones & Shipman |
| Model: | ULTRAMAT EASY 650 |

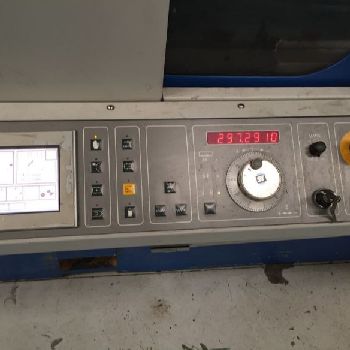

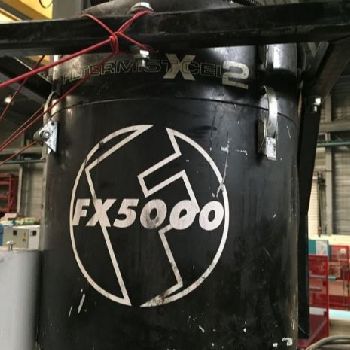

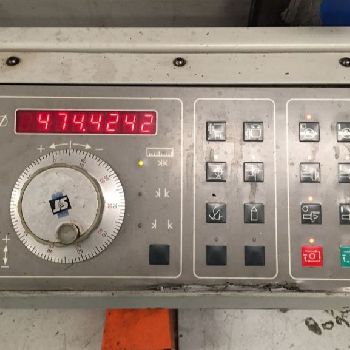

| Description: | Height of spikes 160 mm |Distance between centers 650 mm |Longitudinal travel 750 mm |Diameter of the grinding wheel 457x50x203.2 mm |Peripheral speed 45 m / s |Spindle diameter for grinding inter 10-20 / 25-40 / 50-63 mm |Maximum weight between centers 100 kg |Engine 7.5 kw |Spindle Speed 2174/2672 RPM |Approximate weight 4850 kg |Dimensions 2785x2300x2015 mm |Dimensions 2785x2300x2015 mm |Weight 4850 kg |Ultramat "Easy Grind GE-Fanuc Powermate |Manual or cycling mode |Repeatability of dressage and rectification combination |Diameter MARPOSS E20N mounted on the table: Unspecified end-of-cut control, Diameter, Collision and position for |Grinding wheel |Ball screws, servomotors, and visualization on both axes |Renishaw Feeder |Filtermist Cel 2 |
| Technical Specifications: | Max. grinding length: 750.0 mm CNC: Yes Type of CNC: Ultramat "Easy Grind GE-Fanuc Powermate Max. wheel speed: 2672 rpm Spindle motor power: 7.5 kW Length x width x height: 2785.0 mm × 2300.0 mm × 2015.0 mm Weight: 4850.0 kg State: good At local norms: --------- |
