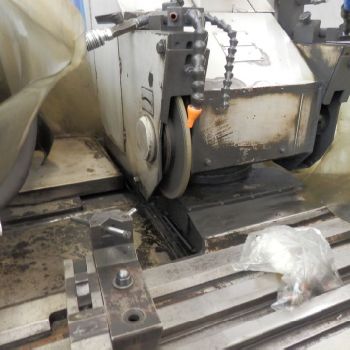

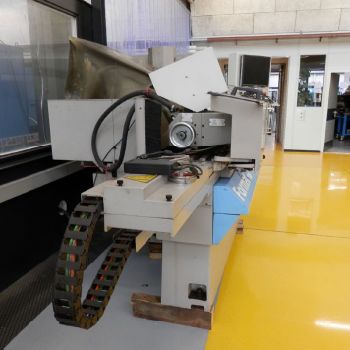

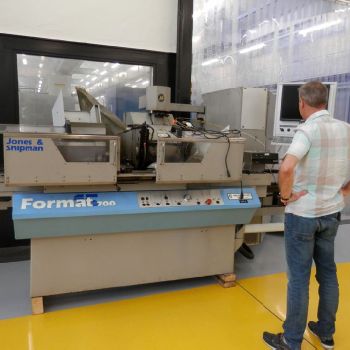

Jones & Shipman F15/700 Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Turkey |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Jones & Shipman |
| Model: | F15/700 |
| Year of Make: | 1997 |
| Description: | OPERATING MEASUREMENTS 250X700mm |1997 MODEL F15 / 700 MODEL |STONE HOLE APAR |ON THE HEAD AND TWO PIECES OF STONE MOUNTING POSSIBLE TO THE LEFT AND LEFT. |SOLID STONE MEASUREMENTS: 350X25X127mm |OIL MOVEMENT MEASURES: 300X25X127mm |
| Technical Specifications: | Max. grinding length: 1000.0 mm Grinding diameter: 350.0 mm Exter: Yes Inter: Yes CNC: Yes Type of CNC: TECH Max. height from spindle to table: 178.0 mm Max. wheel speed: 16500 rpm Spindle motor power: 1.1 kW Length x width x height: - × - × - Weight: 2700.0 kg State: good At local norms: --------- Status: visible |
