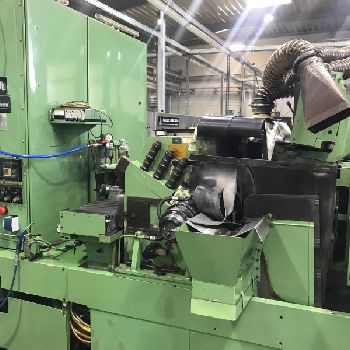

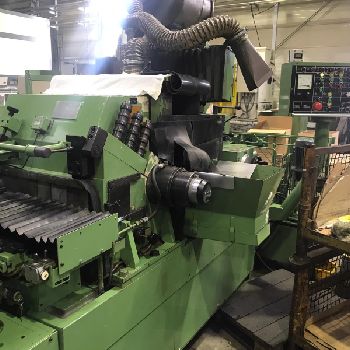

Mikrosa SASL 3 / AEZL Cylindrical centreless grinding machine
$ 34,335
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Centerless Grinders |
| Manufacturer: | Mikrosa |
| Model: | SASL 3 / AEZL |
| Year of Make: | 1988 |
| Description: | Centerless cylindrical grinding machine make MIKROSA type SASL 3 / AEZL |Built in 1988|Technical specifications: |largest sandable workpiece diameter |for grinding wheels diameter 500 mm: 140 mm |largest sandable workpiece diameter |for grinding wheels diameter 630 mm: 80 mm |smallest sandable workpiece diameter: 3.5 mm |abrasives |largest / smallest outer diameter: 500 or 630/380 mm |largest grinding wheel width: 400 mm |Drill hole: 305 mm |possible cutting speed max .: 45 m / sec. |Dressing device abrasive side |Dressing movement, hydraulically stepless: v = 25 - 300 mm / min. |largest dressing path approx .: 425 mm |largest copy angle when dressing: rising 30 degrees |: falling 60 degrees |Copy depth approx .: 25 mm |Quill setting approx. 140 mm |Intermediate slide and governor gearbox |smallest delivery amount: 0.001 mm |Height of spindle center above lower edge of workpiece block: 207 mm |Main body of larger / smaller outer diameter: 315/230 mm |largest widt |
| Technical Specifications: | Centre height: 207.0 mm Grinding wheel diameter: 500.0 mm Grinding wheel width: 400.0 mm Grinding wheel bore: 127.0 mm Grinding wheel speed: 480 rpm Length x width x height: - × - × - Weight: 5000.0 kg State: excellent At local norms: --------- Status: visible |
