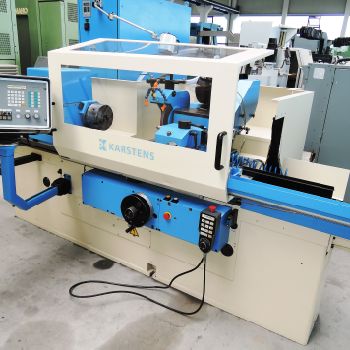

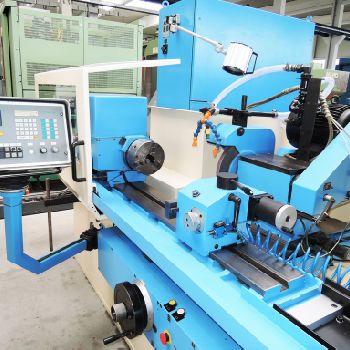

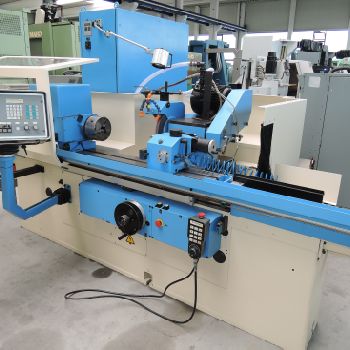

Karstens K 19 - 1000 Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Karstens |
| Model: | K 19 - 1000 |
| Year of Make: | 1997 |

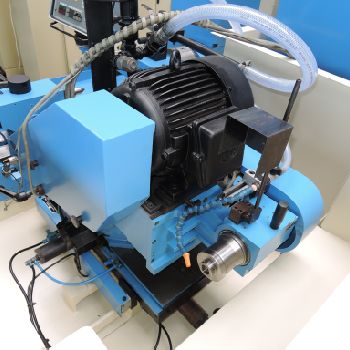

| Description: | K A R S T E N S (Germany) |Universal CNC - Cylindrical Grinding Machine with Internal Grinding Attachment |Model K 19 - 1000 Year 1997 |Height of centres 180 mm |Distance between centres / grinding length 1,000 mm |Cylindrical Grinding: Grinding , approx. 3 - 360 mm |Grinding wheel: x width x bore 500 x 100 x 127 mm |Grinding spindle speeds (35 m/s / 45 m/s) 1,600 rpm |Drive 5.5 kW |Internal Grinding: Grinding approx. 3 300 mm |Grinding spindle max. 80 mm |Grinding Wheelhead: 180 swivable |Quick Feed stroke 50 mm |Adjustment of grinding head on air cushion 280 mm |Grinding slide infeed 0.01 125 mm/min/ |Workpiece wheelhead: Speeds, infinitely variable 30 450 rpm |Swivelling - 30 to 90 |Spindle taper MK 4 |Table speeds 0 3,5 m/min |Table tilt 12 |Total electrical load 12 |kW - 400 V - 50 Hz |Weight, approx. 4,000 kg |Accessories / Special Features: |* Universal wheelhead also for internal grinding, simply by swivelling the wheelhead 180 . |* The Machin |
| Technical Specifications: | Max. grinding length: 1000.0 mm Grinding diameter: 360.0 mm Exter: No Inter: Yes CNC: Yes Type of CNC: MARPOSS E20 Max. wheel speed: 1600 rpm Spindle motor power: 5.5 kW Length x width x height: - × - × - Weight: 4000.0 kg State: good At local norms: --------- Status: visible |
