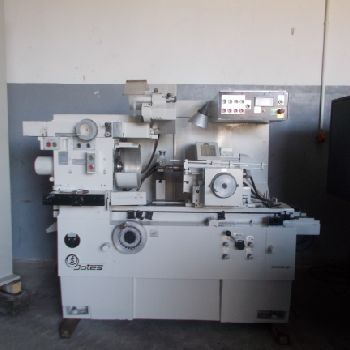

Jotes SOJ-16 Cylindrical external / internal grinding machine
$ 8,566
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Jotes |
| Model: | SOJ-16 |
| Year of Make: | 1991 |
| Description: | Grinder for holes SOJ-16 |Prod. JOTES d POLAND. 1991. |parameters: |Range of ground diameters 10-200 mm, |The largest grinding length 200 mm, |The largest diameter of the workpiece: |- in a 300 mm cover, |- without cover 450 mm, |Spindle speed range (50% -700 rpm), |Total manual table travel 540 mm, |The power of the 3 kW grinding wheel motor, |Total installed power of 7.3 kW, |Dimensions (length X width X height): |2610 x 1600 x 1900 mm, |Weight 3400 kg. |
| Technical Specifications: | Max. grinding length: 200.0 mm Grinding diameter: 200.0 mm Exter: No Inter: Yes CNC: No Max. swing diameter: 450.0 mm Max. height from spindle to table: 225.0 mm Max. wheel speed: 700 rpm Spindle motor power: 3.0 kW Length x width x height: 2610.0 mm × 1600.0 mm × 1900.0 mm Weight: 3400.0 kg State: good At local norms: --------- Status: under power |
