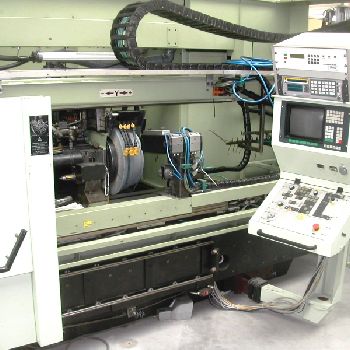

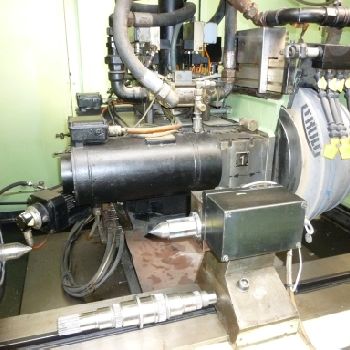

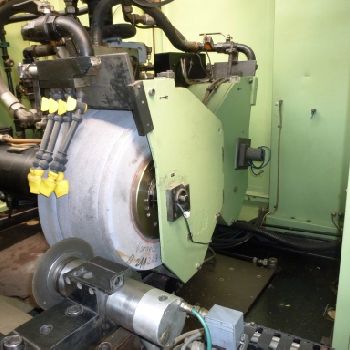

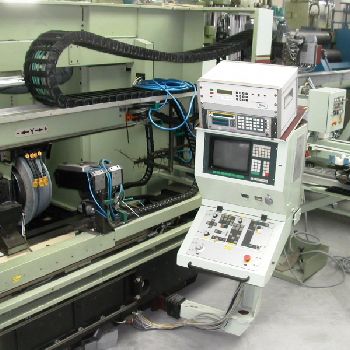

Karstens K 58-1 SL 1000 Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Karstens |
| Model: | K 58-1 SL 1000 |
| Year of Make: | 1997 |
| Description: | K A R S T E N S (Germany) |CNC Controlled Production-Type Cylindrical Grinding Machine With Double Grinding Spindle Head and Workpiece Loading Portal |Model K 58-1 SL 1000 |Year 1997 |Height of centres 181 mm |Distance between centres 1,000 mm |Grinding length, max. 1,000 mm |Cylindrical grinding , min./max., approx. 5 / 360 mm |Grinding wheel, x width x bore 600 x 220 x 203 mm |Cutting speed, max. 50 m/sec |Grinding slide travel (X Axis) 360 mm |Grinding slide feeds 0.01 10,000 mm/min |Grinding slide swivelling (B Axis) 270 |Workpiece wheelhead speeds, infinitely variable 30 1,000 rpm |Workpiece wheelhead swivelling 0 - 90 |Table speeds (Z Axis) 50 10,000 m/min |Table swivelling 8.5 and 6 |Spindle drive 2 x 14 kW |Total electrical load 35kW - 380 V - 50 Hz |Weight 10,000 kg |Accessories / Special Features |Machine is set up for grinding transmission |shafts, each with 3 grinding seats, ground on both sides, with a diameter |range of approx. 60 80 mm. G |
| Technical Specifications: | Max. grinding length: 1000.0 mm Grinding diameter: 360.0 mm CNC: Yes Type of CNC: Karstens Max. wheel speed: 1000 rpm Spindle motor power: 14.0 kW Length x width x height: - × - × - Weight: 10000.0 kg State: good At local norms: --------- Status: visible |
