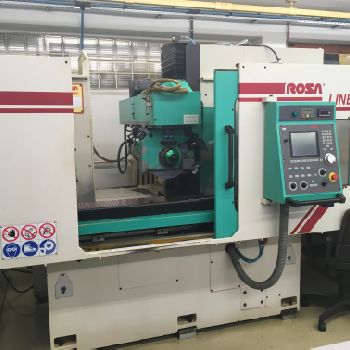

Used ROSA ERMANDO IRON 08.6 CN Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Rosa Ermando |
| Model: | IRON 08.6 CN |
| Description: | Longitudinal (x): 950 mm |Vertical (z): 480 mm |Transversal table (y): 550 mm |Max grinding length: 950 mm |Max grinding width: 630 mm |Distance from table plane spindle axis: 680 mm|Surface: 800x400 mm |Stroke: 950 mm |Translation speed: 1-40 |Capacity: 1000 Kg|Spindle power: 11 Kw |Rotation speed: 1450 Rpm |Notes: AUTOMATIC BALANCER|Wheel band thickness: 80 mm |Max grinding wheel diameter: 400 mm |Hole diameter: 127 mm |
| Technical Specifications: | Max. grinding length: 950.0 mm Grinding diameter: 400.0 mm Exter: Yes CNC: Yes Type of CNC: ECS2400 ROSA SYSTEM Max. wheel speed: 1450 rpm Spindle motor power: 11.0 kW Length x width x height: - × - × - Weight: - State: excellent At local norms: yes Status: visible |
