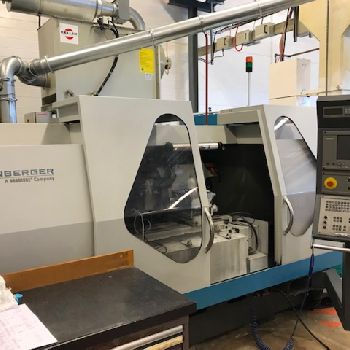

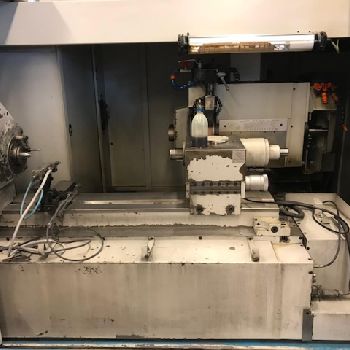

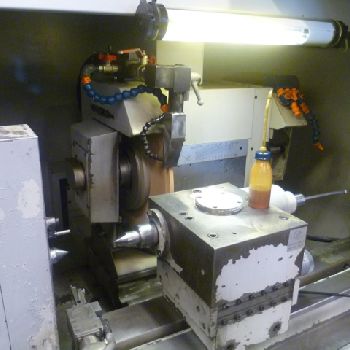

KELLENBERGER KEL-VARIA 1000 Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Switzerland |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Kellenberger |
| Model: | KEL-VARIA 1000 |

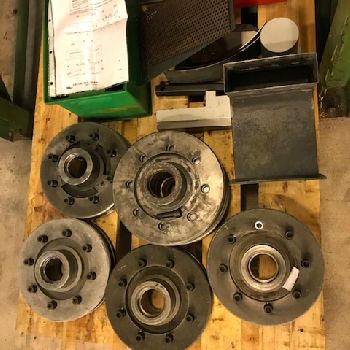

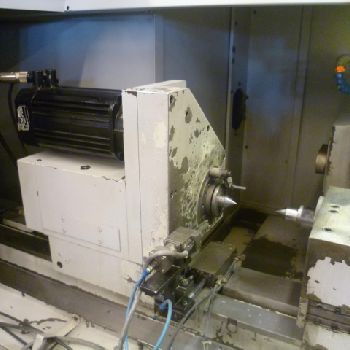

| Description: | Technical data |Centre height 175 mm |Distance between centres 1000 mm |Grinding length 1000 mm |Workpiece weight on centres max. 150 kg |Grinding wheel: |diameter 500 mm |Width 100 mm |bore 203.2 mm |diameter 400 mm |Width 63 mm |bore 127 mm |Peripheral speed 35 m/s |Rotatable grinding spindle head 210 / +30 man. |Max. travel 1150 mm |Work piece spindle head: |speeds: |stepless |from 8 rpm |up to 800 rpm |rotatable +100 / -100 man. |taper in spindle: MT 5 |Taper in tailstock: 4 MT |Tailstock travel of barrel 50 mm |Table speed: |stepless |Rapid motion 12 m/min |Max.table angular displacement 9 |Voltage 50 Hz 3x 400 Volt |Grinding spindle motor 5 kW |Workpiece spindle motor 2.4 kW |Overall dimensions machine: |Length 3200 mm |Width 1700 mm |Height 2000 mm |Various accessories: |Coolant system |Paper filter facility |Set of flanges |

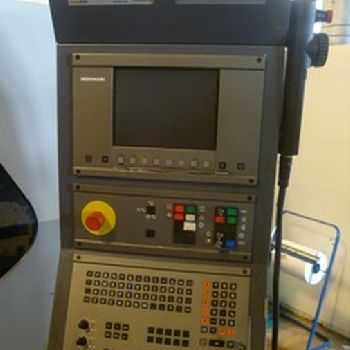

| Technical Specifications: | Max. grinding length: 1000.0 mm Grinding diameter: 500.0 mm CNC: Yes Type of CNC: HEIDENHAIN Max. wheel speed: 800 rpm Spindle motor power: 5.0 kW Length x width x height: 3200.0 mm × 1700.0 mm × 2000.0 mm Weight: - State: good At local norms: --------- |
