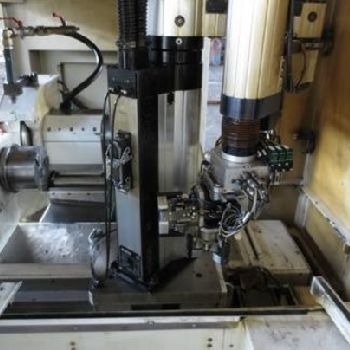

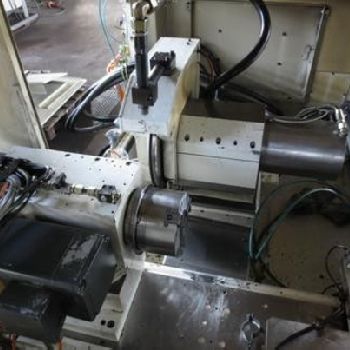

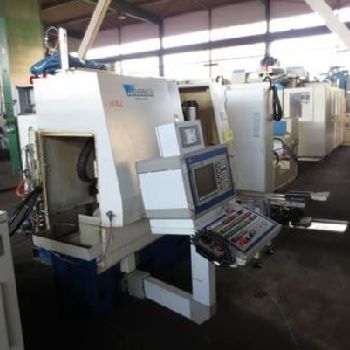

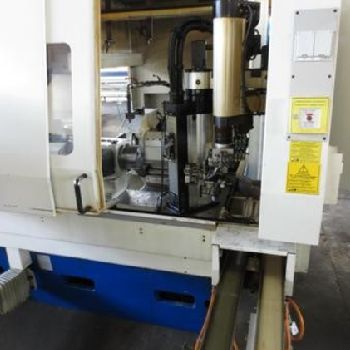

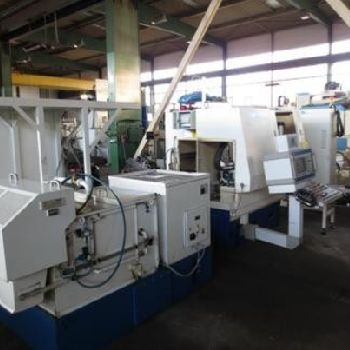

OVERBECK 600RCNCVA Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Overbeck |
| Model: | 600RCNCVA |
| Year of Make: | 1998 |

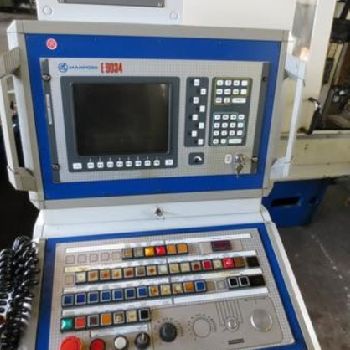

| Description: | Technical details |grinding diameter 190 mm |grinding length 655 mm |centre height 230 mm |control MARPOSS E9034 |clamping length 655 mm |swing dia. 190 mm |work piece spindle speed 20-1000 U/min |grinding spindle speed 1337 / 1573 U/min |dimensions of grinding wheel 500 x 80 x 203,20 mm |taper MK5 |feed X-axis 1 - 9.999 mm/min |rapid traverse X-axis 10,00 m/min |grinding spindle drive 5,50 kW |total power requirement 16,00 kW |weight of the machine ca. 4,10 t |dimensions of the machine ca. 5,00 x 4,00 x H3,20 m |Additional information |Control MARPOSS E9034, loading and unloading robot, electronic handwheel, |coolant unit, hydraulic chuck.|Technical details and information subject to amendments and errors. |
| Technical Specifications: | Max. grinding length: 655.0 mm Grinding diameter: 190.0 mm CNC: Yes Type of CNC: MARPOSS E9034 Max. wheel speed: 1573 rpm Spindle motor power: 5.5 kW Length x width x height: 5000.0 mm × 4000.0 mm × 3200.0 mm Weight: 4100.0 kg State: good At local norms: --------- |
