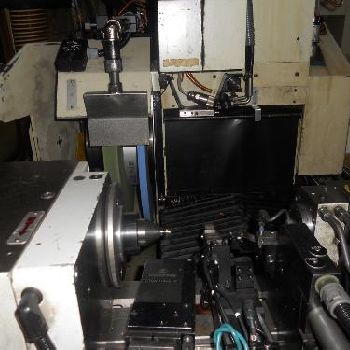

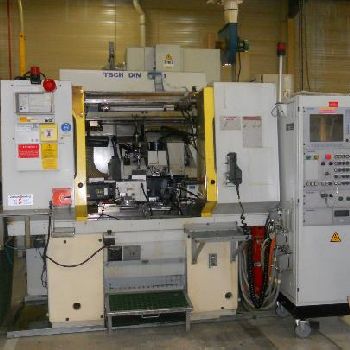

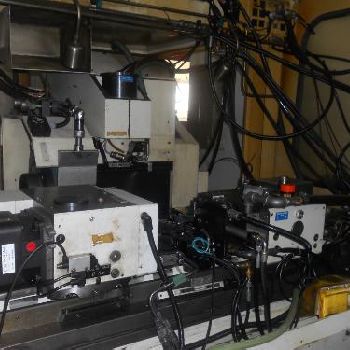

TSCHUDIN TL Cylindrical grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Tschudin |
| Model: | TL |
| Year of Make: | 1998 |
| Description: | Technical data |Centre height 100 mm |Distance between centres 430 mm |Max. grinding diameter 198 mm |Grinding length 400 mm |Workpiece weight on centres max. 100 kg |Grinding wheel: |diameter 500 mm |Width 80 mm |bore 203.2 mm |Grinding wheel speeds: |Peripheral speed 45 m/s |Cross travel CNC 340 mm |Feed speed up 0.1-8000 mm/min |Longitudinal slide: |Max. travel 480 mm |Max. grinding length 400 mm |Resolution 0.0001 mm |Transversal slide: |Max. travel 340 mm |Resolution 0.0001 mm |Work piece spindle head: |speeds: |stepless |from 20 rpm |up to 1000 rpm |rotatable +30/-45 |C axis |taper in spindle: MT 5 |Taper in tailstock: 3 MT |Tailstock travel of barrel 20 mm |Table speed: |stepless |from 0 m/min |up to 8 m/min |Max.table angular displacement +/-9 |Voltage 50 Hz 3x 400 Volt |Grinding spindle motor 7.5 kW |Workpiece spindle motor 0.55 kW |Total power required 16 kVA |Machine’s weight about 4850 kg |Ov |

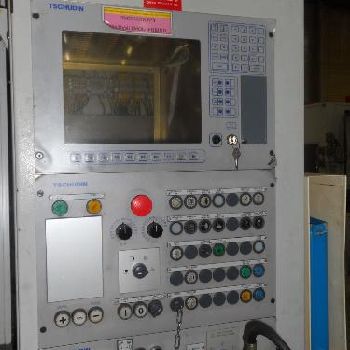

| Technical Specifications: | Max. grinding length: 480.0 mm Grinding diameter: 500.0 mm CNC: Yes Type of CNC: CNC E 34 Max. wheel speed: 1000 rpm Spindle motor power: 7.5 kW Length x width x height: 3280.0 mm × 2300.0 mm × 2210.0 mm Weight: 4850.0 kg State: good At local norms: --------- |
