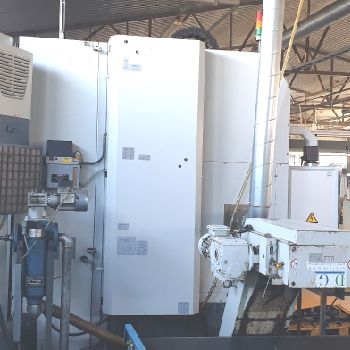

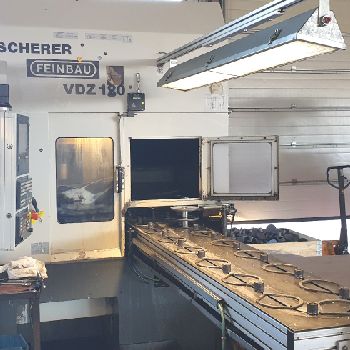

Scherer-Feinbau VDZ120 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | Scherer Feinbau |
| Model: | VDZ120 |

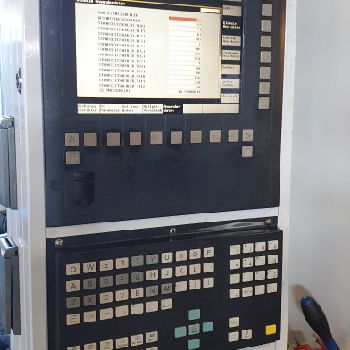

| Description: | gebr. vertical pick-up lathe make SCHERER-Feinbau|Type VDZ120 left and right version with Siemens 840D|TECHNICAL SPECIFICATIONS |Circulation diameter 200 mm |Turning diameter 180 mm |Slide way Z-axis (vertical) 240 mm |Slide way X-axis (horizontal) 738 mm |Diameter in the front bearing 90 mm |Spindle head with short taper DIN55026 A5 |Rated power 100% ED 29.3 KW |Nominal torque 200 Nm |Rated speed 1400 rpm |Maximum speed 6500 rpm |Traversing speed Z-axis max. 30 m / min |Traversing speed X-axis max. 60 m / min |Rated voltage 400 volts, 50 Hz |Backup fuse 80 A |Total power requirement 41KW |Dimensions + weight |LxWxH 1.90 x 2.2 x 2.72 m |Weight 7000 kg|EQUIPMENT and ACCESSORIES |Hollow shaft motor with oil circulation cooling in the headstock |integrated |chip conveyor |Coolant system |Pallet band left |Cabinet Cooling Unit |
| Technical Specifications: | Turning Ø: 180.0 mm Type of CNC: Siemens 840D X-axis: 738.0 mm Z-axis: 240.0 mm Spindle bore: 90.0 mm Turning speed: 6500 rpm Spindle motor power: 41.0 kW Tailstock: no Bar feeder: no Length x width x height: 1900.0 mm × 2200.0 mm × 2720.0 mm Weight: 7000.0 kg State: good At local norms: --------- |
