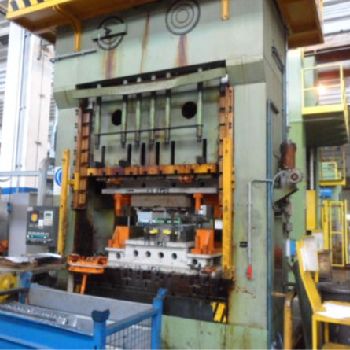

Mechanical Press FARINA 400 ton
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Hydraulic Presses |
| Manufacturer: | FARINA |
| Model: | 400 ton H-Frame |
| Year of Make: | 1985 |
| Description: | Machine in good working condition. Can be inspected in Italy. |Power 400 tons |Strokes per minute 20 |Closed die height 1002 mm |Feeder plan height 500 mm |Fixed slide stroke 400 mm |Press plan dimension 2030 x 1260 mm |Slide dimension 2130 x 1260 mm |Front light uprights 2040 mm |Lateral light uprights 480 mm |Slide adjustment no |Max distance plan- slide 1400 mm |Extraction rod stroke 200 mm |Max width belt 480 mm |Number of lower cushions 2 |Max extraction of upper cams 220 mm |
| Technical Specifications: | Power in tons: 400 T Table length: 2030.0 mm Table width: 1260.0 mm Type: Mechanical Ram stroke: 400.0 mm Nbr of strokes/min: 20.0 Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: visible |
