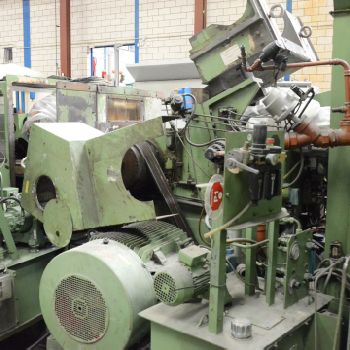

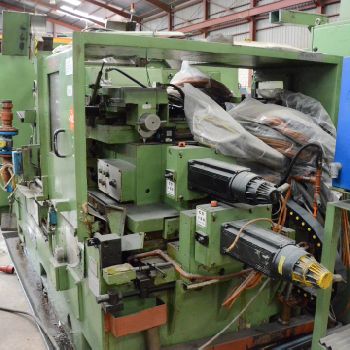

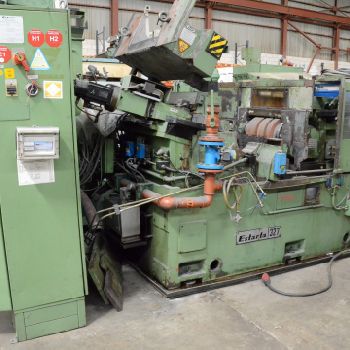

Estarta 327 Cylindrical centreless grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Centerless Grinders |
| Manufacturer: | Estarta |
| Model: | 327 |
| Description: | Dimensions Grinding Wheel (OD x ID x width) 650 x 304.8 x 500mm | min / max to rectify 3/200 mm |Width of regulating wheel 500 mm |No. of Infinites regulating wheel speeds |Min / max speed of regulating wheel (r.p.m.) 10/255 r.p.m. |Diamond Speed 255 r.p.m. |Dimensions Grinding Wheel (OD x ID x width) 350 x 203.2 x 500mm |Grinding wheel width 500 mm |Maximum length to rectify in plonge 500 mm |Motor power grinding wheel head 55 Kw |Hydraulic motor power 3 Kw |Total Power 60 Kw |220 / 380V voltage |Length 2,300 mm |Width 2,800 mm |2,100 mm high |Weight 15,000 Kg |
| Technical Specifications: | CNC: No Type of CNC: - Grinding wheel diameter: 650.0 mm Grinding wheel width: 500.0 mm Grinding wheel bore: 304.8 mm Grinding wheel speed: 255 rpm Length x width x height: 2300.0 mm × 2800.0 mm × 2100.0 mm Weight: 15000.0 kg State: good At local norms: --------- |
