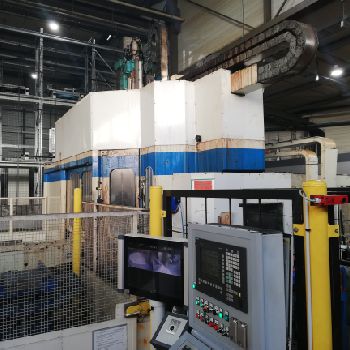

Pietro Carnaghi AC 12 CNC vertical turret lathe with cnc
$ 387,891
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Pietro Carnaghi |
| Model: | AC 12 CNC |
| Year of Make: | 1992 |
| Description: | Machine available now. |Brand: Carnaghi |Model: AC 12 CNC |Machine Specification: |Table 1.250 mm. Max. Working 1.600 mm. Max. Table distance under turning tool 1.500 mm. Max. Turning height 1.250 mm. Max. Weight on table 6 tons. X axis -75 / + 1.750 mm z axis 1250 mm c axis 360 table turning motor power 60 kw. Table speeds - n. 2 ranges; 3 - 333 rpm. Spindle speed 0 1000 rpm spindle motor power 22 kw vertical travel 1.000 mm. Ram size 250 x 250 mm working feeds 0 - 2000 mm/min. Nc: siemens 840d-ncu572.5-64mb 60 tool atc total weight 23 tons. Built in 1991 sell with an automatic pallet changer 8 pallets 10 pallets stations |
| Technical Specifications: | Plate diameter: 1250.0 mm Working height: 1250.0 mm CNC type: SIEMENS 840D-NCU572.5-64Mb Max piece weight: 6000.0 kg Rotation speed: 333 rpm Motor power: 60.0 kW Overhauled: no Length x width x height: - × - × - Weight: - State: good At local norms: yes Status: in production |
