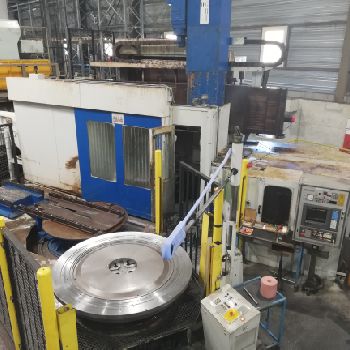

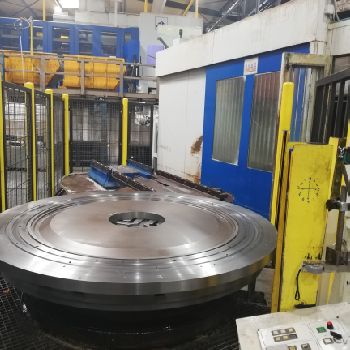

Pietro Carnaghi AC 20 TM vertical turret lathe with cnc
$ 328,045
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Pietro Carnaghi |
| Model: | AC 20 TM |
| Year of Make: | 1987 |
| Description: | Machine available now. |Brand: carnaghi |Model: ac 20 tm |Machine specification: |Table 1,800 mm. |Max. Working 2.000 mm. |Max. Turning height 1.250 mm. |Max. Weight on table 15 tones. |X axis 2700 mm |Z axis 1200 mm |C axis 360 |Table speeds; 3 - 300 rpm. |60 kw motor table |Ram size 250 x 300 mm |Working feeds 0 - 2000 mm / min. |Nc: fanuc series 15 t |50 tool atc iso 50 |Total weight 58 tones. |Built in 1987 |Milling capability (head available) |Grinding capability (head available) |Sell with automatic pallet |2 pallets |2 pallets stations |
| Technical Specifications: | Plate diameter: 1800.0 mm Working height: 1250.0 mm CNC type: FANUC SERIES 15 T Max piece weight: 15000.0 kg Rotation speed: 300 rpm Motor power: 60.0 kW Overhauled: no Length x width x height: - × - × - Weight: - State: good At local norms: yes Status: in production |
