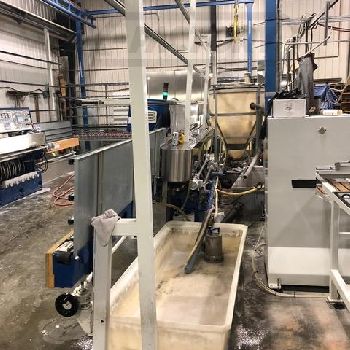

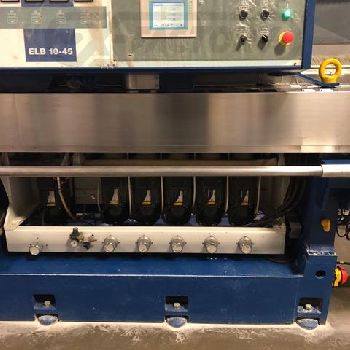

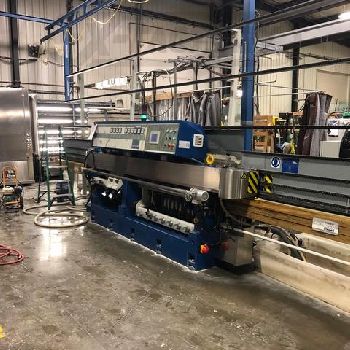

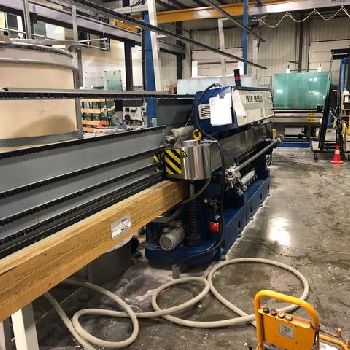

BOVONE ELB-10-45
$ 118,250
| Type: | Buy-It-Now |
| Location: | Canada | Alberta |
| Category: | Glass |
| Manufacturer: | ELB-SCHLIFF |
| Model: | ELB-10-45 |
| Year of Make: | 2014 |
| Description: | BOVONE ELB-10-45 Straight-Line Glass Beveler (10) Cup type wheel edger designed to produce cerium-polished flat edges or 0 to 45 degree miters, both with a two-wheel arris polish configuration. There are (6) mitering wheels attached to the swivelling beam. The main movements of the machine are controlled by PLC from Siemens. The main working parameters are set and visualized through an operator interface. Edge removal is set adjusting the height of the entrance conveyor. Wheel Configuration: (5) Diamond Wheels For Flat/Miter Edge (2) Diamond Wheels For Seams (2) Composition Type Polish Wheels For Seams (1) Felt Wheel For Cerium Oxide Polish of Flat/Miter Edge Specifications: Feed: 0.35 - 5.4 m/Min (18 FPM) Min. Glass size: 65 x 65 mm (2.5" x 2.5") Glass thickness: 2 - 30 mm (0.012" - 1.2") Arris width: up to 5 mm (0.10") Miter angle: 0 - 45° Working height: 895 mm (35") Overall dimensions: 8200 x 1200 x 2900 mm (323" x 47" x 114") Weight: 4950 kG (10,913 lbs) NOTE: Machine in excellent |
