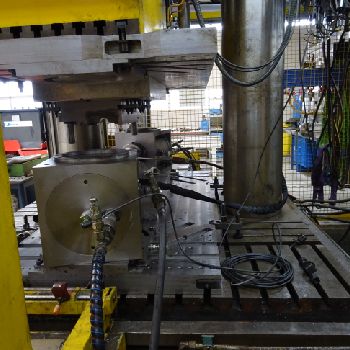

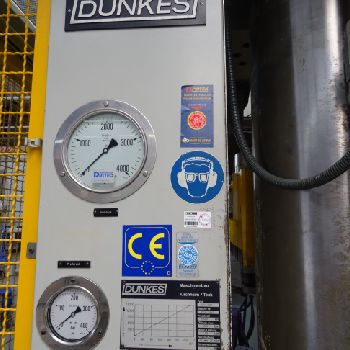

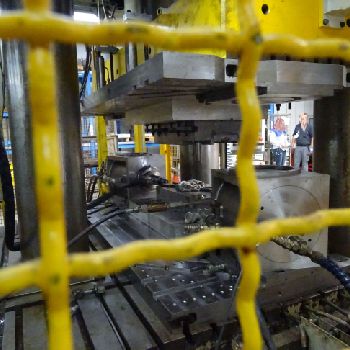

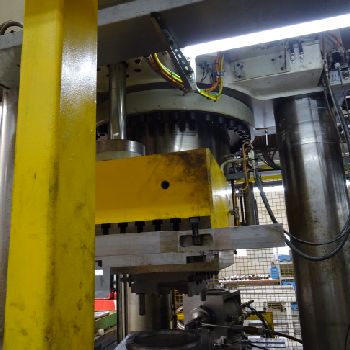

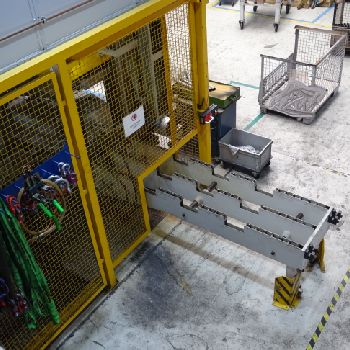

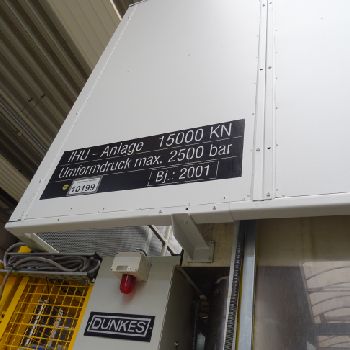

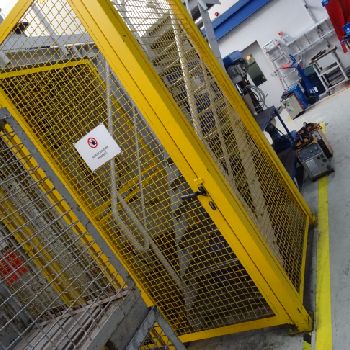

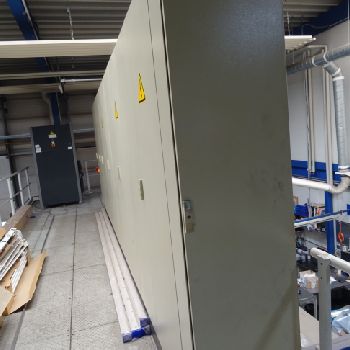

IHU plant, hydraulic 3 column press DUNKES HS 3-1500
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Schwäbisch Gmünd | Baden-Württemberg |
| Category: | Further Equipment |
| Manufacturer: | DUNKES |
| Description: | Technical specifications: Generally: Type: HS 3-1500 Machine No .: H00-3043 / E13-22197 Year of construction: 2000 Conversion: 2013 Press: Pressing force (locking force): 15,000 kN Installation height max .: 1100 mm Installation height min., 400 mm Discharge: - mm Tool data: Width max. - mm Depth max .: - mm Height min .: 400 mm Weight max .: 10 000 kg Ram speeds: Rapid lowering speed from: 248/189/96 mm / s Working speed Partial load: 10.3 mm / s Working speed max .: 1.5 mm / s Return stroke speed max .: 420 mm ram: Ram stroke: 700 mm Ram size: W x D: 2040 x 1840 mm T-slots Plunger plate DIN 650 22 H12 Electrical data: Drive power main pump tappet M1: 55 kw Drive power PTO 1 M2: 37 kW Drive power PTO 2 M3: 37 kW Drive power water high-pressure pump 7M6: 11 kW Drive power clamping M5: 2.2 kW Drive power hydraulic tensioning unit M6: 1.5 kW Drive power radiator auxiliary hydraulic M7: 0.75 kW Drive power water hydraulic supply plate heat exchanger 7M2: 0.75 kW Drive power filter pump 7M |
