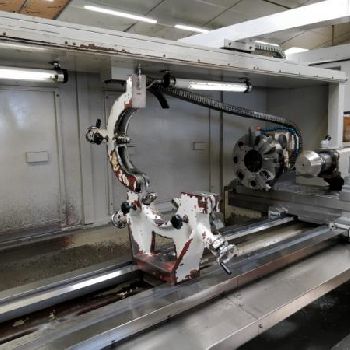

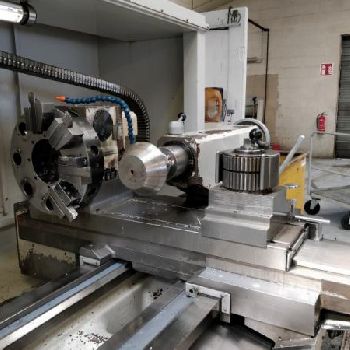

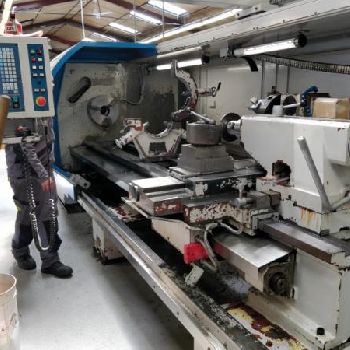

Microcut / Galaxy BNC 30120 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | CNC Lathes |
| Manufacturer: | Microcut |
| Model: | BNC 30120 |
| Year of Make: | 2003 |

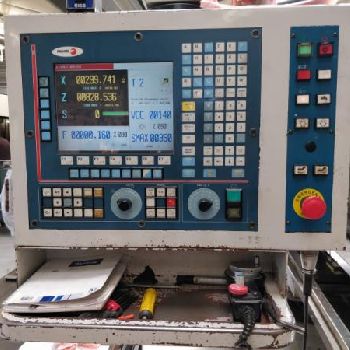

| Description: | Fagor 8055 Digital Controller |Machinable diameter in the broken 1020 mm |Machinable diameter above the bench 760 mm |Machinable diameter above the transverse slide 420 mm |Max machining length 3000 mm |Stroke X 425 mm |Stroke Z 3200 mm |Spindle speed 15 to 1480 rpm |Spindle motor power 22/33 Kw |Spindle motor torque 4000 Nm |Spindle nose A1 - 11 |Spindle boring 106 mm |Fast feeds (X / Z) 10/12 m / min |Turret Type Manual Quick Change |Number of tools 8 vdi50 |Manual Tailpiece Type |Diameter of the sleeve of the counter-tip 125 mm |230 mm sheath stroke |Fixed sheath type |Manual sheath release |Morse taper of the counterpoint 6 CM |Number of slides 2 |Installed power 50 Kva |Year 2003 |
| Technical Specifications: | Ø above the bed: 760.0 mm Ø above transversing slide: 420.0 mm Length between centers: 3000.0 mm Type of CNC: Fagor 8055 X-axis: 425.0 mm Z-axis: 3200.0 mm Spindle taper: CM 6 Spindle bore: 106.0 mm Turning speed: 1480 rpm Spindle motor power: 33.0 kW Tailstock: no Bar feeder: no Length x width x height: 5900.0 mm × 2630.0 mm × 2220.0 mm Weight: 11000.0 kg State: good At local norms: --------- |
