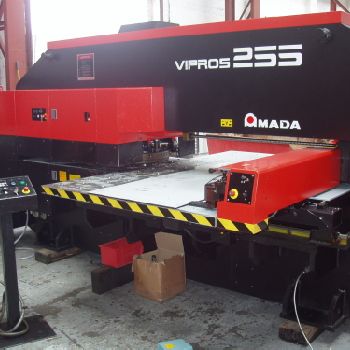

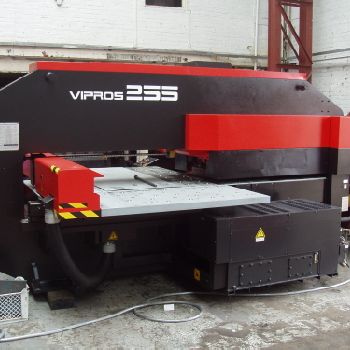

1998 Amada Vipros 255
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom | Congleton | England |
| Category: | Punching Machines |
| Manufacturer: | Amada |
| Model: | Vipros 255 |
| Year of Make: | 1998 |
| Description: | Stock No.: 1570 Contact Us Now Download machine specification Model Amada Vipros 255, 31 Station Turret with 3 Autoindexing units Year 1998 Frame Construction Bridge Type Press Capacity 20 tonnes (196kN) Press Type Servo Controlled Hydraulic Ram Axis Traverse Distance 1270 x 1270mm Workable Maximum Sheet Size with Auto Positioning 1270 x 2540mm Max. Material Thickness 6.4mm Mild Steel Max. Material Weight 100Kg Max. Hole Diameter 88.9mm No. of Stations 31 Stations: 19 x A (Max. Dia. 12.7mm) 6 x B (Max. Dia. 31.7mm) 1 x C (Max. Dia. 50.8mm) 2 x D (Max. Dia. 88.9mm) Auto Indexing: 2 x B (Max Dia 31.7mm) 1 x C (Max. Dia. 50.8mm) Axis Speed X / Y 82m/min Hits per Minute 2mm Pitch: 1000 H.P.M./2.5mm Stroke 25.4mm Pitch: 340 H.P.M./8mm Stroke Turret Speed Bi-Directional 35 RPM Punching Accuracy / - 0.07mm Positioning Repeatability / - 0.015mm Ram Stroke Length 40mm |
$ 35,229AVERAGE PRICE | |
 JTES Ltd Units 2-4 Congleton Trade Centre, Back Lanecw12 4xj CongletonUnited Kingdom | |
