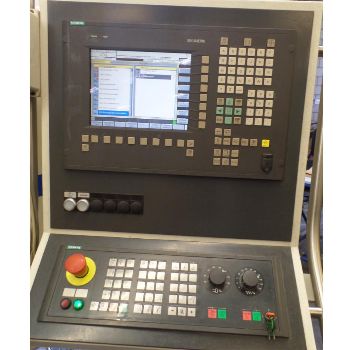

Blohm PLANOMAT HP 412 CNC Surface grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Surface Grinding Machines |
| Manufacturer: | Blohm |
| Model: | PLANOMAT HP 412 CNC |
| Year of Make: | 2008 |
| Description: | CNC - PRECISION - FLAT AND PROFILE GRINDING MACHINE |Make BLOHM |Type PLANOMAT HP 412 CNC |Control SINUMERK 840 D |Year 2008 |grinding area |Grinding area 1.200x400 mm |Traverse transversely (Z-axis) 360 mm |Distance table surface - grinding spindle center 700 mm |Max. Travel vertical (Y-axis) 550 mm|Worktable |Electro Permanent Chuck 1.200 x 400 mm |Pendulum pole pitch of 18 mm |Clamping control 8 levels|Table drive (X-axis) |Digital servo motor with ball screw and angle incremental encoder in the |Longitudinal axis (X-axis) |Table speed from 30 to 40,000 mm / min |preloaded precision rolling guide|Automatic vertical delivery (Y-axis) |Resolution 0,001 mm |Smallest delivery size 0.001 mm |Linear scale measuring system |Distance spindle center - table 150 - 700 mm |Grinding head vertical travel 550 mm |Ball screw with servo motor and planetary gear, preloaded precision rolling guide|Cross feed (Z axis) |Resolution 0,001 mm |Smallest delivery size 0.001 mm |Line |
| Technical Specifications: | Table length: 1200.0 mm Table width: 400.0 mm CNC: Yes CNC type: SINUMERIK 840 D Max. wheel speed: 6000 rpm Power: 15.0 kW Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: under power |
