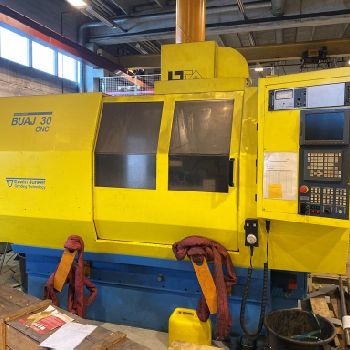

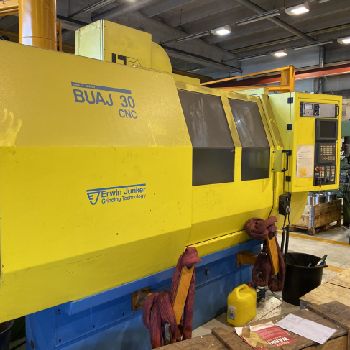

Junker BUAJ 30 CNC Cylindrical centreless grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Centerless Grinders |
| Manufacturer: | Junker |
| Model: | BUAJ 30 CNC |
| Year of Make: | 2000 |
| Description: | FIELD OF WORK |Distance between centers: 800 mm |Center height: 150 mm |Longitudinal (z): 756 mm |Max grinding length: 800 mm |Max grinding diameter: 300 mm |TABLE |Stroke: 756 mm |Translation speed: 0 - 7.5 mm / min |Max piece weight: 120 Kg |Inclination: +/- 8.30 |CNC |Cnc: FANUC 210i |Measurement system: MARPOSS E9 |Drives: FANUC |MILL HEAD |External spindle power: 7.5 Kw |External wheel rotation speed: 300 Rpm |Resolution (axis b): + 45 / -15 |LEFT WHEEL |Wheel band thickness: 63 mm |Max grinding wheel diameter: 400 mm |Hole diameter: 127 mm |PIECE HEAD |Rotation speed: 22/313 - 300/750 Rpm |Inclination: 90 |Cone: MK4 |TAILSTOCK |Stem travel: 30 mm |Cone: MK4|Total machine weight: 2800 Kg |Machine dimensions: 300X1850X1800 mm |Accessories supplied: Diamantatore |Automatic diamond cutter: No |Filtering system: 250lt paper filter. |Use and maintenance books: Yes |Electrical diagrams: Yes |CE certification: Yes |Fairing: COMPLETE |Smoke extract |
| Technical Specifications: | Distance between centers: 800.0 mm Max. length of workpiece: 800.0 mm Max. weight between centers: 120.0 kg Centre height: 150.0 mm CNC: Yes Type of CNC: FANUC 210i Grinding wheel diameter: 400.0 mm Grinding wheel width: 127.0 mm Grinding wheel bore: 63.0 mm Grinding wheel speed: 750 rpm Length x width x height: 1850.0 mm × 300.0 mm × 1800.0 mm Weight: 2800.0 kg State: good At local norms: --------- Status: visible |
