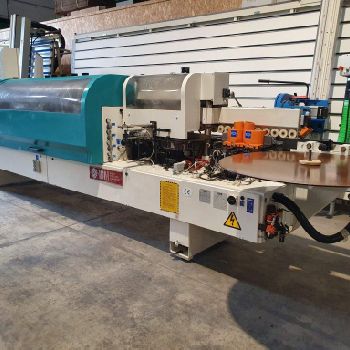

Used Idm Idimatic 53-5, CE edgebander
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Edge Banding Machines |
| Manufacturer: | IDM |
| Model: | Idimatic 53-5, CE |
| Description: | Single automatic edging machine for application of PVC, ABS, melamine, veneer and solid wood edges in strips or rolls. Compact, sturdy machine, ideal for industrial or artisan use and for who use edgebanding machines for multiple applications, involving the use of a wide range of different types of panel and edging material. Robust, safe and reliable panel transport system for optimum holding of panels of all dimensions. Extra-large industrial chain with large, individually interchangeable pods.|Techical features|Panel thickness: 10 50 mm. |Panel width: min. 55 mm. |Panel length: min. 140 mm. |Thickness of edge-banding material in rolls: 0,4 3 mm. |Thickness of edge-banding material in strips: max 20 mm. |Edge eight: max 4 mm. |Panel overhang: 30 mm. |Feed speed: 12 18 m/min |Weight: kg. 2.870 |Documents: operation and maintenance manual, spare parts catalogue, electrical sheet, software manual, CE declaration of conformity |Working units |Large diameter roll holder |Pre- |
| Technical Specifications: | Board thickness: 55.0 mm Edge thickness: 50.0 mm Feed advance: 18 m/min Length x width x height: - × - × - Weight: 2870.0 kg State: excellent At local norms: yes Status: under power |
