SCHIATTI ANGELO FPD-60
$ 17,500
| Type: | Buy-It-Now |
| Location: | Lithuania |
| Category: | Glass |
| Manufacturer: | Schiatti |
| Model: | FPD-60 |
| Year of Make: | 2004 |

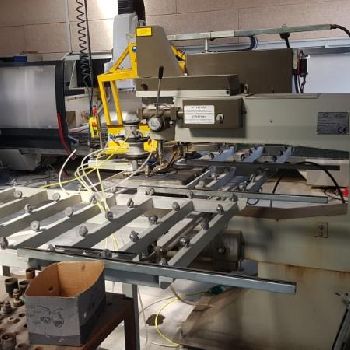

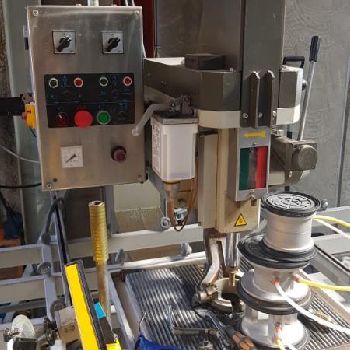

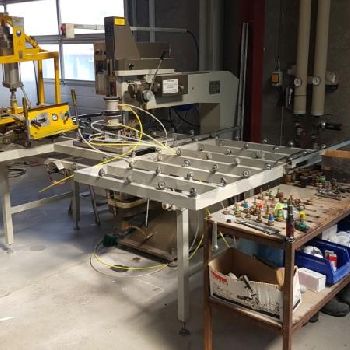

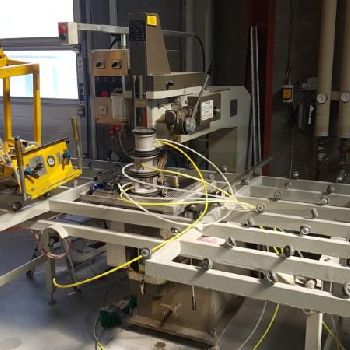

| Description: | SCHIATTI ANGELO FPD 60 Horizontal Drill System with Top & Bottom Opposite Heads This drill enables the operator to drill holes in glass sheets up to 28 mm thickness. The glass sheet is held in place automatically during drilling. The spindles are driven by a pulley drive and V-belts; (3) different speeds can be obtained by changing the position of the belt on the prismatic pulleys. An integrated device automatically conveys the glass-refuse into the appropriate container. Water flows over the heads through the spindles: the water flow starts automatically and stops when drilling is complete. An additional push button installed on an adjustable telescopic support lets the operator start the work cycle from an accessible position. Specifications: Min. thickness: 2 mm Max. thickness: 28 mm Max. diameter automatic: 100 mm Max. diameter manual: 200 mm Working height: 1050 mm Machine Dimensions: Width: 2650 mm Depth: 2125 mm Height: 1750 mm Overal weight: 470 kG Arm depth: 1030 mm Air co |
