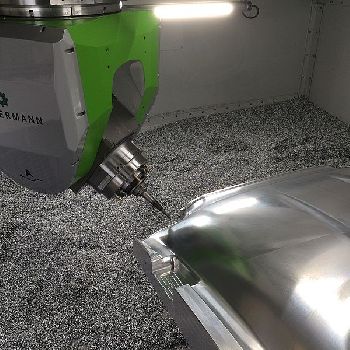

10.050 5-axis portal milling machine Zimmermann FZ33c, 2016
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Waldburg | Baden-Württemberg |
| Category: | CNC Milling Machines |
| Manufacturer: | Zimmermann |
| Model: | FZ33c |
| Year of Make: | 2016 |

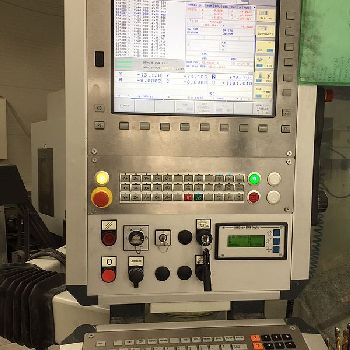

| Description: | 10.050 5-axis portal milling machine Zimmermann FZ33c, 2016 ID 10050 description 5-axis portal milling machine Manufacturer carpenter Type FZ33c Construction year 2016 Status Fully functional condition, available from March 2020 Location Waldburg, Germany Workspace X-axis: approx. 2,500 mm Y-axis: approx. 3,000 mm Z-axis: approx. 1,250 mm A-axis: ± 110 ° C axis: ± 300 ° Technical specifications: First commissioning: 2016 Control: Heidenhain iTNC 530 HSCI incl. Rollable control unit HR 520 worktable Clamping area: approx. 2,500 x 3,250 x 400 mm 2-axis milling head VH20 Spindle power: 45 kW Spindle speed: max. 25,000 min-1 Torque: 67 Nm Tool holder: HSK 63A Tool bracing: hydraulic Actuators linear axes Feedrate X-, Y-, Z-axis: up to 60 m / min Axis acceleration X, Y, Z axis: up to 5 m / s2 connection data Connected load: 125 kW Rated current: 180 A Backup fuse: 200 A Dimensions, weights Required space Machine with protective cabin: approx. |
 Styrotec GmbH + Co KG Sieberatsreute 95a88289 WaldburgGermany SHOW |
