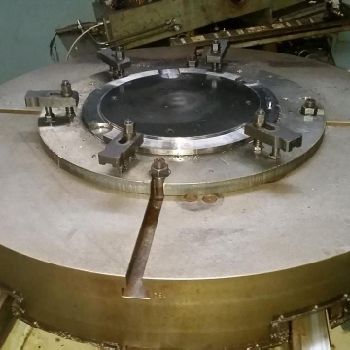

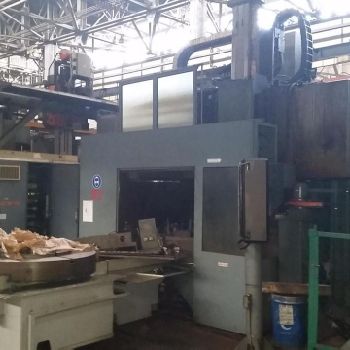

CNC Vertical turret lathe SCHIESS 16DSC-125P
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Schiess |
| Year of Make: | 1988 |
| Description: | CNC control: Siemens SINUMERIK|Faceplate diameter: 1250 mm|Diameter of processing: 1600 mm|Length of processing: 1460 mm|Max. weight of work-piece: 8000 kg|Table diameter: 1250 mm|Z-axis travel: 1400 mm|Max. processing and turning diameter: 1250 mm|Max. height of turning: 800 mm|Max. work-piece height: 1250 mm|Max. work-piece diameter: 1650 mm|Vertical movement of support on traverse: 1000 mm|-From turning center to the right: 970 mm|-From turning center to the left: 655 mm|Cross-section of incisal skids: 250x210 mm|Min. infeed diameter: 330 mm|Cutting effort at feed of up to 450 mm: 30 kN|Rotations of clamping plate per min: 4-200|Main motor output: 45 kW|Dimensions (l x w x h): 3500x3800x4100 mm|Machine weight: 22000 kg |
| Technical Specifications: | CNC control: Siemens SINUMERIK Faceplate diameter: 1250 mm Diameter of processing: 1600 mm Length of processing: 1460 mm Max. weight of work-piece: 8000 kg Table diameter: 1250 mm Z-axis travel: 1400 mm Max. processing and turning diameter: 1250 mm Max. height of turning: 800 mm Max. work-piece height: 1250 mm Max. work-piece diameter: 1650 mm Vertical movement of support on traverse: 1000 mm -From turning center to the right: 970 mm -From turning center to the left: 655 mm Cross-section of incisal skids: 250x210 mm Min. infeed diameter: 330 mm Cutting effort at feed of up to 450 mm: 30 kN Rotations of clamping plate per min: 4-200 Main motor output: 45 kW Dimensions (l x w x h): 3500x3800x4100 mm Machine weight: 22000 kg |
