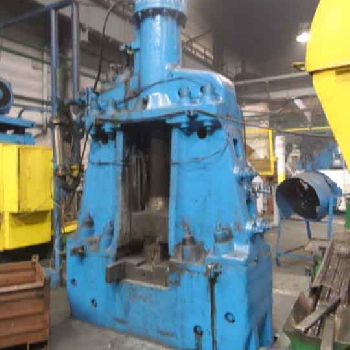

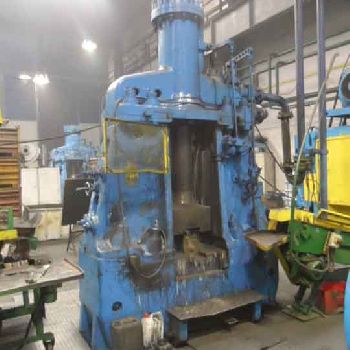

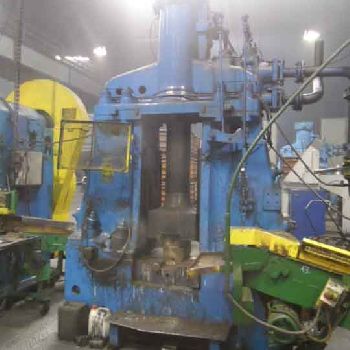

Hammer HUTA ZYGMUNT mod. MPM-1600B
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Forging Hammers |
| Manufacturer: | Hammer |
| Description: | Energy of full blow: 1840 kgm|Ram weight: 630 kg|Ram stroke: 750 mm|Spacing of guides: 430 mm|-In the ram: 400 mm|-In the cushion: 600 mm|Min. die height: 180 mm|Max. load of upper die: 200 kg|Height of die distribution over the floor: 800 mm|Number of strokes per minute: 120|The intake air pressure: 0,5-0,7 MPa|The intake vapor pressure: 0,5-0,7 MPa|Average air consumption per minute: 7 m³|Average vapor consumption per hour: 380 kG|Cylinder diameter: 320 mm|Ram stem diameter: 240 mm|Inlet pipe diameter: 80 mm|Outlet pipe diameter: 80 mm|Weight of anvil block: 12,5 tons|Weight of hammer with anvil block: 12,5 tons |
| Technical Specifications: | Energy of full blow: 1840 kgm Ram weight: 630 kg Ram stroke: 750 mm Spacing of guides: 430 mm -In the ram: 400 mm -In the cushion: 600 mm Min. die height: 180 mm Max. load of upper die: 200 kg Height of die distribution over the floor: 800 mm Number of strokes per minute: 120 The intake air pressure: 0,5-0,7 MPa The intake vapor pressure: 0,5-0,7 MPa Average air consumption per minute: 7 m³ Average vapor consumption per hour: 380 kG Cylinder diameter: 320 mm Ram stem diameter: 240 mm Inlet pipe diameter: 80 mm Outlet pipe diameter: 80 mm Weight of anvil block: 12,5 tons Weight of hammer with anvil block: 12,5 tons |
