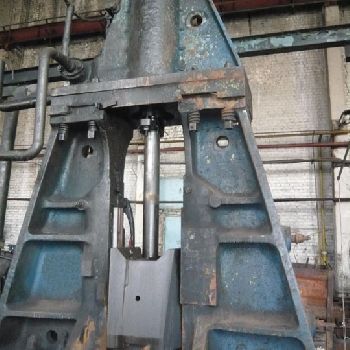

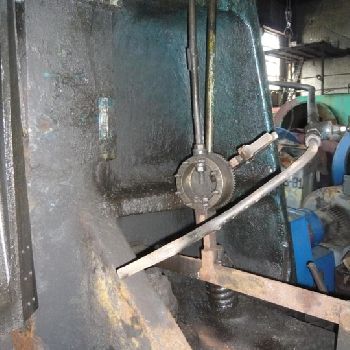

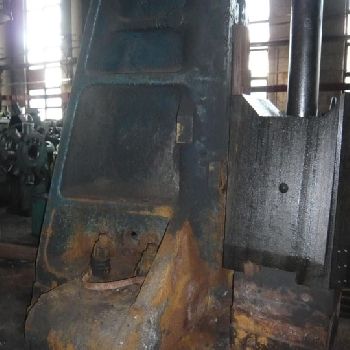

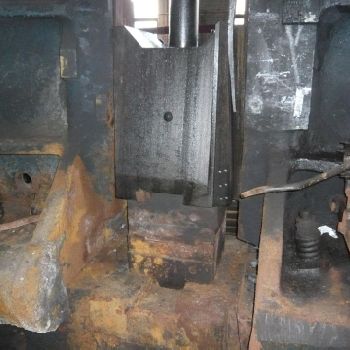

Air drop forging hammer mod. M212
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Forging Hammers |
| Manufacturer: | Hammer |
| Description: | Nominal mass of drop parts: 2000 kg|Impact energy: 50 kJ|Max. number of blows per minute: 70|Max. ram stroke: 1200 mm|Distance clear between guides: 600 mm|Ram front-to-back dimensions: 670 mm|Die-holder front-to-back dimensions: 900 mm|Bottom die impression-to-floor distance: 840 mm|Minimum die holder-to-ram distance: 260 mm|-Inlet: 6-8 Mpa|-Exhaust: 0,2-0,5 Mpa|Overall dimension: 2950x1660 mm|Height above floor level: 5310 mm|Mass (less anvil block): 18,31 tons|Mass of anvil block: 40 tons |
| Technical Specifications: | Nominal mass of drop parts: 2000 kg Impact energy: 50 kJ Max. number of blows per minute: 70 Max. ram stroke: 1200 mm Distance clear between guides: 600 mm Ram front-to-back dimensions: 670 mm Die-holder front-to-back dimensions: 900 mm Bottom die impression-to-floor distance: 840 mm Minimum die holder-to-ram distance: 260 mm -Inlet: 6-8 Mpa -Exhaust: 0,2-0,5 Mpa Overall dimension: 2950x1660 mm Height above floor level: 5310 mm Mass (less anvil block): 18,31 tons Mass of anvil block: 40 tons |
