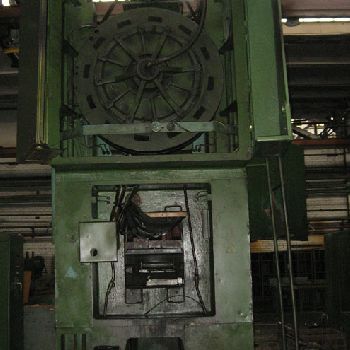

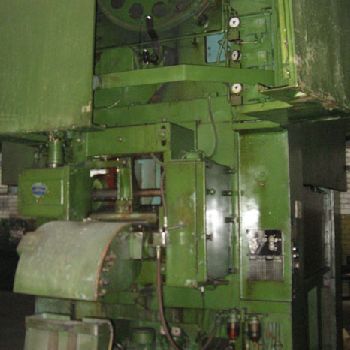

High speed press KOSICE А2-200/360
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Metal Presses |
| Manufacturer: | ZTS Košice |
| Year of Make: | 1986 |
| Description: | Nominal force: 2000 kN|Distance between columns: 1400 mm|Fixing board dimensions (WxL): 1350x1100 mm|Dimensions of the working slide area: 1250x900 mm|Slide stroke: 30 mm|Distance between fixing board and slide (lower slide position, slide adjustment in utmost upper position): 400 mm|Slide adjustment: 100 mm|Fixing board thickness: 180 mm|Falling window on fixing board (WxL): 1160x360 mm|Falling window on table (WxL): 1225x360 mm|Number of traverses in slide: 4|Stroke of ejector: 4 mm|Total capacity of ejector: 200 Kn|Number of pressing fingers on traverse: 5|Height of supply of strip material above the fixing board, adjustable from-to: 150-200 mm|Longitudinal vents in slide: 50x8 mm|Material thickness, up to: 0,5 mm|Number of strokes per minute, smoothly adjustable: 100-350|Motor power of main drive: approx. 30 kW|Number of motor revs of oil pump: 1000/min|Max. strip width: 360 mm|Max. external diameter of strip roll: 1200 mm|Installation range of strip roll along internal diameter: 5 |
| Technical Specifications: | Nominal force: 2000 kN Distance between columns: 1400 mm Fixing board dimensions (WxL): 1350x1100 mm Dimensions of the working slide area: 1250x900 mm Slide stroke: 30 mm Distance between fixing board and slide (lower slide position, slide adjustment in utmost upper position): 400 mm Slide adjustment: 100 mm Fixing board thickness: 180 mm Falling window on fixing board (WxL): 1160x360 mm Falling window on table (WxL): 1225x360 mm Number of traverses in slide: 4 Stroke of ejector: 4 mm Total capacity of ejector: 200 Kn Number of pressing fingers on traverse: 5 Height of supply of strip material above the fixing board, adjustable from-to: 150-200 mm Longitudinal vents in slide: 50x8 mm Material thickness, up to: 0,5 mm Number of strokes per minute, smoothly adjustable: 100-350 Motor power of main drive: approx. 30 kW Number of motor revs of oil pump: 1000/min Max. strip width: 360 mm Max. external diameter of strip roll: 1200 mm Installation range of strip roll along internal diameter: 500-610 mm Max. strip thickness: 1 mm Travel of upper rollers: 6 mm Max. roll weight: 3000 kg Strip unwinding speed, smoothly adjustable from-to: 0,1-60 m/min Electric motor power: 3 kW Weight: 2200 kg |
