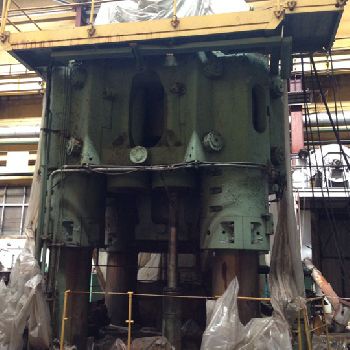

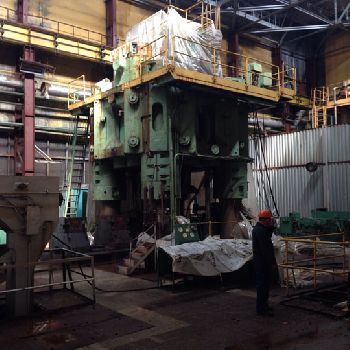

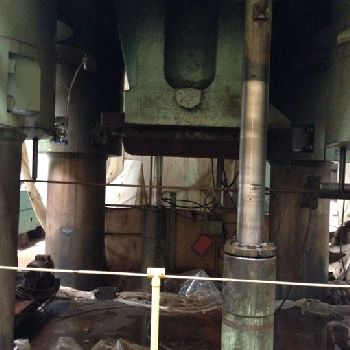

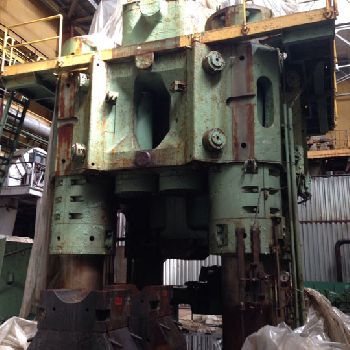

Hydraulic press for bandage rings UZTM mod. 9606.00
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Hydraulic Excavators |
| Manufacturer: | URAL |
| Year of Make: | 1982 |
| Description: | Working force: 30000 tons|Number of steps: 2|-1st step: 15000 tons|-2nd step: 30000 tons|Number of working cylinders: 4|Ram diameter of working cylinder: 1750 mm|Force of lifting cylinders: 250x4 tons|Number of lifting cylinders: 4|Ram diameter of lifting cylinder: 320 mm|Force of returning cylinders: 95x2 tons|Number of returning cylinders: 2|Ram diameter of returning cylinder: 200 mm|Max. stroke of movable traverse: 1250 mm|Distance between column axes: 3500x3500 mm|Distance between columns in daylight: 2600x2600 mm|-Dimensions of working area: 2500x3000 mm|-Stroke: 3500 mm|Table movement speed: 150 mm/sec|Voltage: 220/380 V|Frequency: 50 Hz|Power: 85 kW|-In the plan: 16140x19570 mm|-Over floor level: 9290 mm|-Deepenings: 9900 mm|-Total height: 19190 mm|Max. work-piece weight (traverse): 147 tons|Press weight: 1660 tons|Total weight: 2365 tons |
| Technical Specifications: | Working force: 30000 tons Number of steps: 2 -1st step: 15000 tons -2nd step: 30000 tons Number of working cylinders: 4 Ram diameter of working cylinder: 1750 mm Force of lifting cylinders: 250x4 tons Number of lifting cylinders: 4 Ram diameter of lifting cylinder: 320 mm Force of returning cylinders: 95x2 tons Number of returning cylinders: 2 Ram diameter of returning cylinder: 200 mm Max. stroke of movable traverse: 1250 mm Distance between column axes: 3500x3500 mm Distance between columns in daylight: 2600x2600 mm -Dimensions of working area: 2500x3000 mm -Stroke: 3500 mm Table movement speed: 150 mm/sec Voltage: 220/380 V Frequency: 50 Hz Power: 85 kW -In the plan: 16140x19570 mm -Over floor level: 9290 mm -Deepenings: 9900 mm -Total height: 19190 mm Max. work-piece weight (traverse): 147 tons Press weight: 1660 tons Total weight: 2365 tons |
