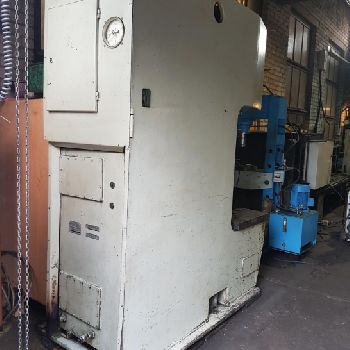

Hydraulic single-column press P6334
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Hydraulic Excavators |
| Manufacturer: | JSC |
| Year of Make: | 1981 |

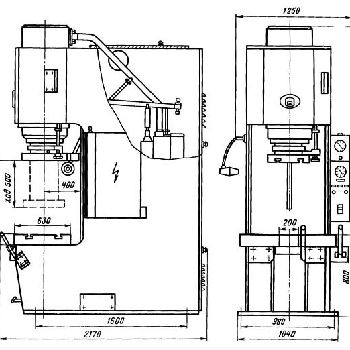

| Description: | Nominal press force: 250 t|Max. rod stroke: 500 mm|Max. distance between table and rod - open press height: 800 mm|Distance between rod axis and bed: 400 mm|Rod speed - working stroke: 4.5 mm/sec|Rod speed - idle stroke: 29 mm/sec|Rod speed - reverse stroke: 70 mm/sec|Table dimensions: 1000 х 630 mm|Dimensions of table opening: 200 х 415 mm|Dimensions of removable levelling table: 2500 х 600 mm|Weight of removable levelling table: 960 kg|Weight of levelling tool: 195 kg|Table height above floor level: 745 mm|Nominal fluid working pressure: 250 kg/cm2|Electrical equipment|Number of electric motors: 1|Main drive electric motor: 18,5 kW|Dimensions and weight of the press|Dimensions of the press (length width height): 1250 х 2170 х 3150 mm|Machine weight: 10940 kg|Universal hydraulic single-column presses are designed to perform a wide range of technological operations of mounting and pressing, sheet stamping, broaching and some others. |
