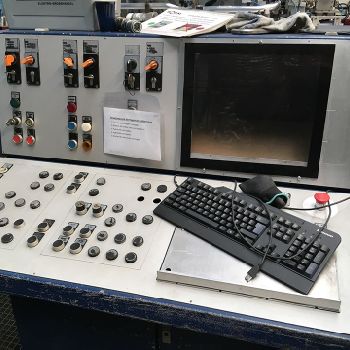

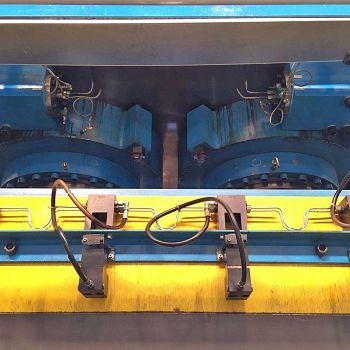

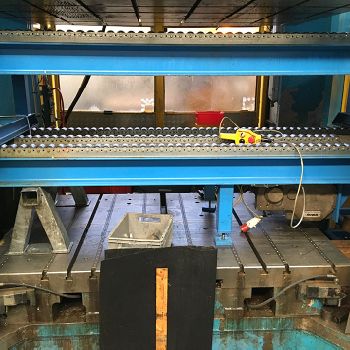

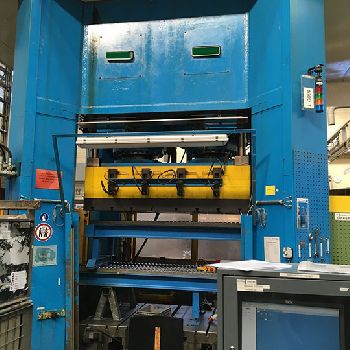

Hydro-forming press SIEMPELKAMP mod. IHU 1600
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Closed-Die Forging Presses |
| Manufacturer: | Siempelkamp |
| Year of Make: | 1995 |
| Description: | Total pressure force: 16000 kN|Tool height: 400 mm|Height: 1500 mm|Stand width: 2050 mm|Tables: 2 x 1000 x 1300 mm|1 x 2000 bar pressure intensifier|Max. hold-down pressure: 16000 kN|Press stroke: 1100 mm|Max. lowering speed in the stand-alone: 600 mm/s|Max. lowering speed coupled operation: 300 mm/s|Max. speed of retreat in the individual operation: 640 mm/s|Max. retreat speed coupled: 320 mm/s|Axial forming cylinder: 2 St|Max. hydraulic pressure: 330 bar|Installed drive power: 230 kW|Total weight according to manufacturer: about 155,000 kg|ALL forming of internal high-pressure forming make SIEMPELKAMP year 1995.|Both cylinders were about 3 years ago overhauled. |
