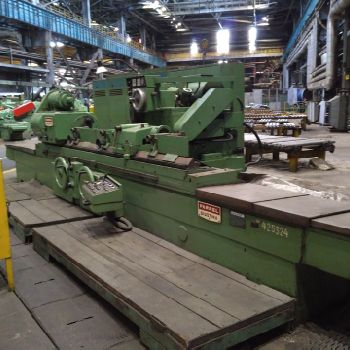

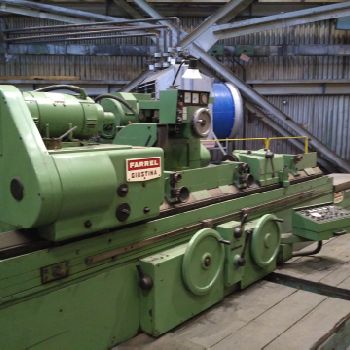

Heavy-duty roll grinding machine FARREL GIUSTINA TT 16x8
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Roll Grinding Machines |
| Manufacturer: | Giustina |
| Year of Make: | 1975 |
| Description: | Max. work-piece diameter over bed: 508 mm|Max. grinding diameter with a new wheel: 407 mm|-Max.: 585 mm|-Min.: 215 mm|Diameter of a new wheel: 700 mm|Min. diameter of a wheel: 380 mm|Thickness of a standard wheel: 51 mm|Thickness of a special wheel: 76 mm|Opening diameter of a standard wheel: 304,8 mm|Max. roll weight: 2500 kg|Distance between centres: 2440 mm|Max. grinding length: 2485 mm|Angular table movement: 5 deg. - 4 deg.|Table length: 4360 mm|Machine length: 7890 mm|Machine weight: 14400 kg |
| Technical Specifications: | Max. work-piece diameter over bed: 508 mm Max. grinding diameter with a new wheel: 407 mm -Max.: 585 mm -Min.: 215 mm Diameter of a new wheel: 700 mm Min. diameter of a wheel: 380 mm Thickness of a standard wheel: 51 mm Thickness of a special wheel: 76 mm Opening diameter of a standard wheel: 304,8 mm Max. roll weight: 2500 kg Distance between centres: 2440 mm Max. grinding length: 2485 mm Angular table movement: 5 deg. - 4 deg. Table length: 4360 mm Machine length: 7890 mm Machine weight: 14400 kg |
