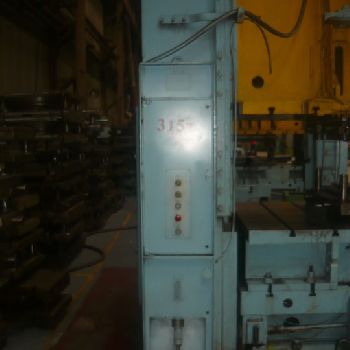

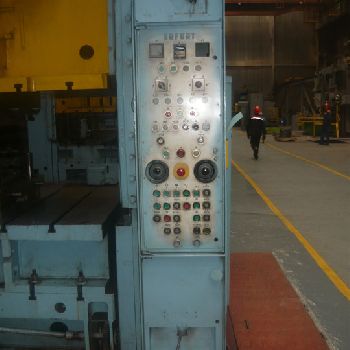

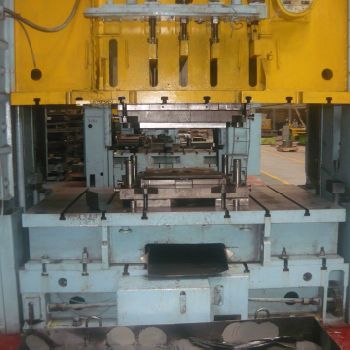

Double column crank stamping press ERFURT PKZZ III 315.1 FS
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Stamping Presses |
| Manufacturer: | Erfurt |
| Description: | Max. capacity: 315 tons|Table size: 2500x1400 mm|Slide stroke: 400 mm|Slide stroke per 1 min: 25|Slide adjustment: 400 mm|Slide area: 2450x1400 mm|Distance between columns: 2500 mm|Table height over floor: 480 mm|Daylight: 1080 mm|Shut height (stroke down-adjustment up): 900 mm|Die cushion capacity: 63 tons|Die cuschion stroke: 160 mm|Voltage: 380 V|Main motor power: 45 kW|Total power requirement: 70 kW|Press dimensions: 4300x2500x6000 mm|Weight: 60 tons |
| Technical Specifications: | Max. capacity: 315 tons Table size: 2500x1400 mm Slide stroke: 400 mm Slide stroke per 1 min: 25 Slide adjustment: 400 mm Slide area: 2450x1400 mm Distance between columns: 2500 mm Table height over floor: 480 mm Daylight: 1080 mm Shut height (stroke down-adjustment up): 900 mm Die cushion capacity: 63 tons Die cuschion stroke: 160 mm Voltage: 380 V Main motor power: 45 kW Total power requirement: 70 kW Press dimensions: 4300x2500x6000 mm Weight: 60 tons |
