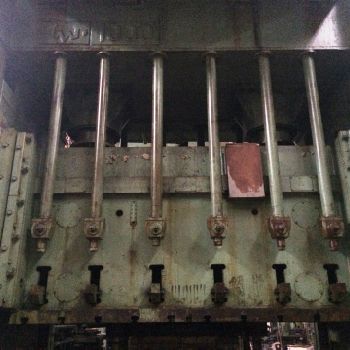

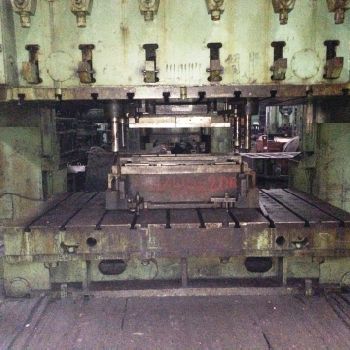

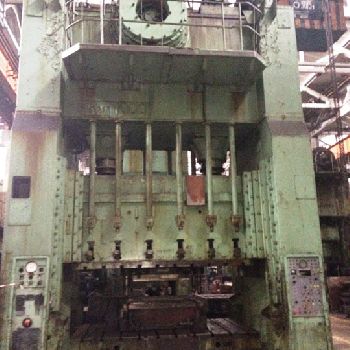

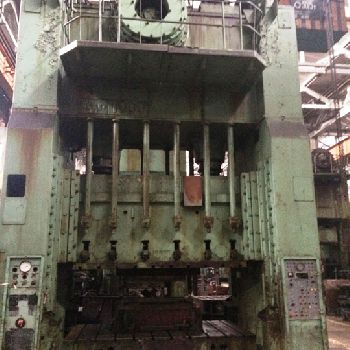

Sheet stamping press VORONEZH KA3540
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Stamping Presses |
| Manufacturer: | Voronezh |
| Year of Make: | 1982 |
| Description: | Nominal force: 1000 tons|Slide stroke: 400 mm|Number of continuous slide strokes per 1 min: 20|Number of single slide strokes per 1 min: 16|Max. distance between table and slide in its lower position: 1060 mm|Adjustment of distance between table and slide: 920 mm|Max. distance between bolster plate and slide in its lower position at the upper position of adjustment: 810 mm|Size of distance adjustment between bolster plate and slide: 320 mm|Shut height: 810 mm|Slide adjustment: 320 mm|Table dimensions: 3150x1800 mm|Slide dimensions, front-back: 1700 mm|Bolster plate thickness: 250 mm|Slide travel to its extreme position where press develops nominal force: 12 mm|Total pneumatic cushion force: 200 tons|Pneumatic cushion working stroke: 200 mm|Number of table windows: 2|-Left-to-right: 1200 mm|-Front-to-back: 1130 mm|-Height: 1500 mm|-Width: at least 1900 mm|-Force: 50 tons|-Stroke: 150 mm|Max. weight of die: 9000 kg|Upper knock-out force: 50 tons|Main drive electric motor power: 132 kW|Vo |
| Technical Specifications: | Nominal force: 1000 tons Slide stroke: 400 mm Number of continuous slide strokes per 1 min: 20 Number of single slide strokes per 1 min: 16 Max. distance between table and slide in its lower position: 1060 mm Adjustment of distance between table and slide: 920 mm Max. distance between bolster plate and slide in its lower position at the upper position of adjustment: 810 mm Size of distance adjustment between bolster plate and slide: 320 mm Shut height: 810 mm Slide adjustment: 320 mm Table dimensions: 3150x1800 mm Slide dimensions, front-back: 1700 mm Bolster plate thickness: 250 mm Slide travel to its extreme position where press develops nominal force: 12 mm Total pneumatic cushion force: 200 tons Pneumatic cushion working stroke: 200 mm Number of table windows: 2 -Left-to-right: 1200 mm -Front-to-back: 1130 mm -Height: 1500 mm -Width: at least 1900 mm -Force: 50 tons -Stroke: 150 mm Max. weight of die: 9000 kg Upper knock-out force: 50 tons Main drive electric motor power: 132 kW Voltage: 380 V, 50 Hz Overall press dimensions: 5150x4700x7830 mm Overall press height: 11400 mm Max. total weight of die: 20 tons Press weight: 193 tons |
