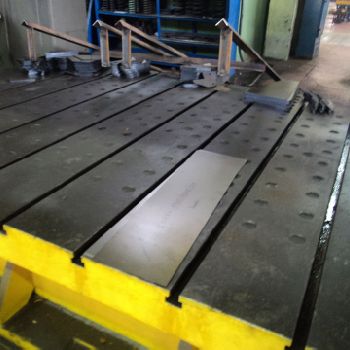

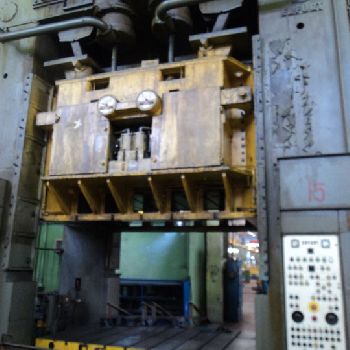

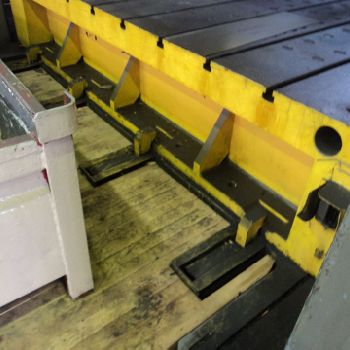

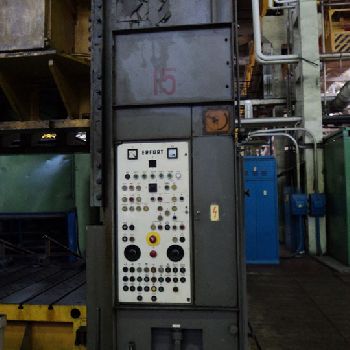

Straight side double action sheet stamping press ERFURT PKnVT VI 800 1/3150 FS
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Stamping Presses |
| Manufacturer: | Erfurt |
| Year of Make: | 1976 |
| Description: | Max. effort of inner slide (25 mm till the end of stroke): 500 tons|Allowable effort of inner slide (355 mm till the end of stroke): 200 tons|Max. effort of outer slide (10 mm till the end of stroke): 315 tons|Max. cushion effort: 125 tons|Hydraulic overload protection for inner slide, adjustable from: 250-500 tons|Hydraulic overload protection for outer slide, effort of separate suspension points adjustable from: 160-315 tons|Number of idle strokes at continuous work: 16 per minute|Stroke time of microdrive: about 6 min|Electric motor of press drive: 160 kW|Electric motor of microdrive: 22 kW|Max. counterbalanced weight of inner slide: 7 tons|Max. counterbalanced weight of outer slide: 10 tons|Distance between columns: 3150 mm|Inner slide stroke: about 800 mm|Outer slide stroke: about 630 mm|Max. depth of extract: 355 mm|Adjustment of both slides: 500 mm each|Adjustment range of extract depth: 0-355 mm|Max. closed height of inner slide: 1750 mm|Max. closed height of outer slide: 1500 |
| Technical Specifications: | Max. effort of inner slide (25 mm till the end of stroke): 500 tons Allowable effort of inner slide (355 mm till the end of stroke): 200 tons Max. effort of outer slide (10 mm till the end of stroke): 315 tons Max. cushion effort: 125 tons Hydraulic overload protection for inner slide, adjustable from: 250-500 tons Hydraulic overload protection for outer slide, effort of separate suspension points adjustable from: 160-315 tons Number of idle strokes at continuous work: 16 per minute Stroke time of microdrive: about 6 min Electric motor of press drive: 160 kW Electric motor of microdrive: 22 kW Max. counterbalanced weight of inner slide: 7 tons Max. counterbalanced weight of outer slide: 10 tons Distance between columns: 3150 mm Inner slide stroke: about 800 mm Outer slide stroke: about 630 mm Max. depth of extract: 355 mm Adjustment of both slides: 500 mm each Adjustment range of extract depth: 0-355 mm Max. closed height of inner slide: 1750 mm Max. closed height of outer slide: 1500 mm Height of sliding table: 600 mm Table dimensions: 3150x2100 mm Dimensions of opening in the table: 2500x1600 mm Inner slide dimensions: 2500x1600 mm Outer slide dimensions: 3150x2100 mm Press weight: 250 tons |
