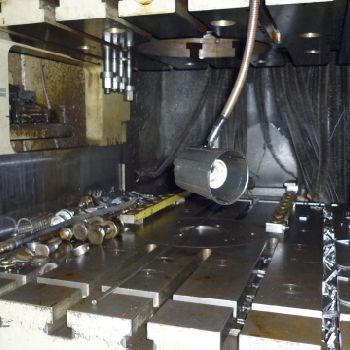

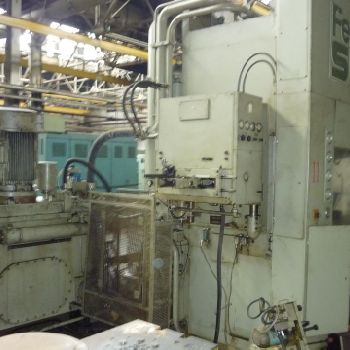

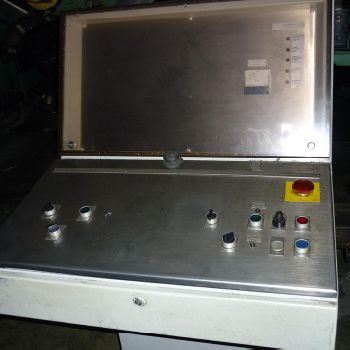

Fine blanking press SMG FEINTOOL HFA 6300
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Metal Presses |
| Manufacturer: | SMG |
| Year of Make: | 1989 |
| Description: | MAIN RAM|Total force (nominal): 400-630 tons|Slide stroke: 20-100 mm|V-RING|Nominal force: 320 tons|Slide stroke: 40 mm|OTHER DATA|Max. daylight: 400 mm|Cutting force: 180-585 tons|Max. second movement: 27 mm|Close speed: 120 mm/s|TOOL AREA|Lower table width: 900 mm|Lower table depth: 900 mm|Upper table width: 900 mm|Upper table depth: 1260 mm|Tool shut height: 320-400 mm|Clamping area distance: 500 mm|Material distance from upper table: 180-280 mm|Reading accurancy of adjustment indication: 0,01 mm|SPEED|Shearing speed: 3-24 mm/s|Slide closing speed: 120 mm/s|Slide return speed: 135 mm/s|POWER|Total power requirement: 97 kW|Main drive: 75 kW |
