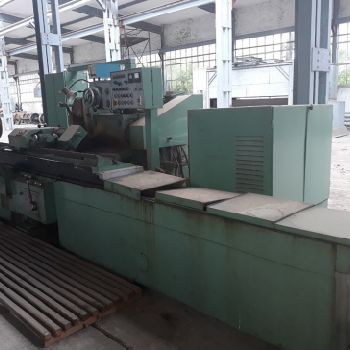

Universal cylindrical grinding machine 3M175
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Universal |
| Year of Make: | 2007 |
| Description: | -Diameter / length: 400/2800 mm|-Diameter / length: 400/2520 mm|Max. work-piece weight: 1000-15 mm|Max. length of table travel: 2800 mm|Height of centres above the table: 210 mm|Accuracy class in accordance with GOST 8: P|Spindle cone of headstock and tailstock in accordance with GOST 25557: Morse 6|-Nominal diameter: 100h11 mm|-Diameter of support necks: 110f7 mm|-Diameter external / internal: 750/305 mm|-Height: 80 mm|Spindle rotation frequency of grinding headstock: 1270 min-1|-Max.: 180 min-1|-Min.: 20 min-1|Circular speed of grinding wheel: 50 m/sec|- Clockwise / counterclockwise: 2 / 4 deg|Total power of electric motors: 26,19 kW|Power supply: 3-phase, 380 V, 50 Hz|-Length: 8310 mm|-Width: 3690 mm|-Height: 2135 mm|Net weight: 13850 kg|Semi-automatic circular grinders are intended for outer grinding of workpiece’s cylindrical and low-taper conic surfaces by plunge-cut and longitudinal method of grinding under conditions of simple, serial and mass production.|On the semi-automatic |
