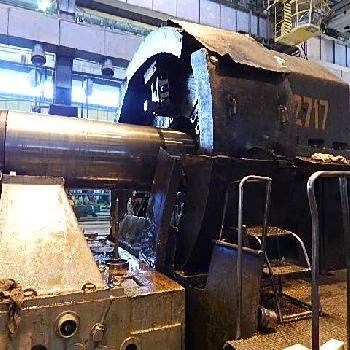

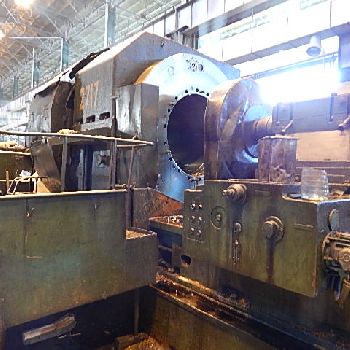

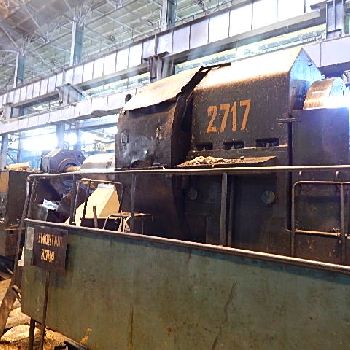

Deep hole drilling machine KZH 1940
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania | Vilnius |
| Category: | Deep Hole Drilling Machines |
| Manufacturer: | KRAMATORSK |
| Year of Make: | 1977 |
| Description: | Max. diameter of boring opening: 2000 mm|Max. drilling depth (length of work-piece): 25000 mm|Height of centers: 1700 mm|-Continuous drilling: 80-210 mm|-Circular drilling: 450 mm|-Boring: 80-2000 mm|Max. work-piece diameter: 3400 mm|-Open lunette: 700-2300 mm|-Floating lunette: 1060-2200 mm|-Circular lunette: 300-1100 mm|-Closed lunette: 300-1200 mm|Max. travel of stem headstock: 20000 mm|Max. work-piece weight: 400000 kg|-Lenght: 63000 mm|-Width: 7400 mm|-Height: 5300 mm|Machine weight with electric equipment: 503000 kg|Main drive power: 160 kW|-Spindle headstock of work-piece: 0,5-60 rpm|-Spindle headstock of stem (tool): 3,3-400 rpm|Range of feeds (stepless adjustment): 0,4-2800 mm/min |
| Technical Specifications: | Max. diameter of boring opening: 2000 mm Max. drilling depth (length of work-piece): 25000 mm Height of centers: 1700 mm -Continuous drilling: 80-210 mm -Circular drilling: 450 mm -Boring: 80-2000 mm Max. work-piece diameter: 3400 mm -Open lunette: 700-2300 mm -Floating lunette: 1060-2200 mm -Circular lunette: 300-1100 mm -Closed lunette: 300-1200 mm Max. travel of stem headstock: 20000 mm Max. work-piece weight: 400000 kg -Lenght: 63000 mm -Width: 7400 mm -Height: 5300 mm Machine weight with electric equipment: 503000 kg Main drive power: 160 kW -Spindle headstock of work-piece: 0,5-60 rpm -Spindle headstock of stem (tool): 3,3-400 rpm Range of feeds (stepless adjustment): 0,4-2800 mm/min |
