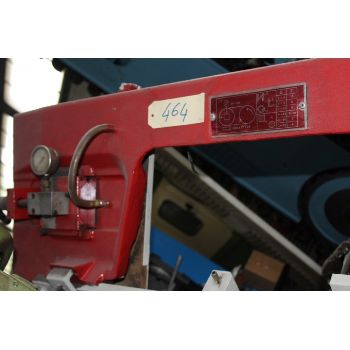

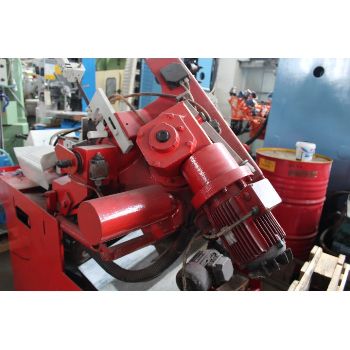

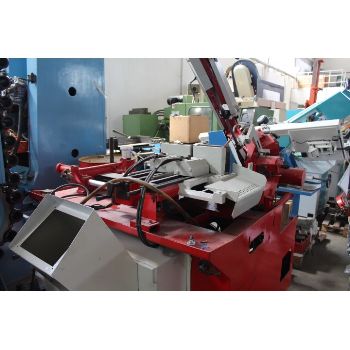

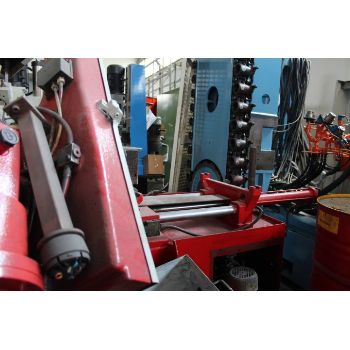

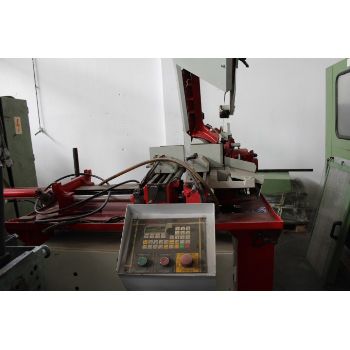

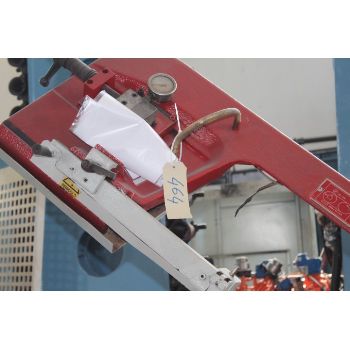

CODE 464 BAND SAW RAIMONDI MOD RAIM N021
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy | Monte San Pietro | Emilia Romagna |
| Category: | Further Machine Tools |
| Manufacturer: | Raimondi |
| Model: | BB400 |
| Year of Make: | 2000 |
| Description: | CODE 464 | RAIMONDI BAND SAW MOD RAIM N021 | Round size: 320 mm; | Cutting capacity: 270 mm; | Cutting capacity with vertical vice for pack cuts: MIN./mm110 x 95, MAX. / Mm 250 x 140; | Blade dimensions: 3,600 x 25 x 0.9 mm; | Standard blade speed: 20 95 M / min. | Blade speed with 2-speed motor: 14 140 M / min. | Feed carriage travel length: 500 mm; | Available travel: N 999; | Flywheel diameter: 380 mm; | Workbench height: 900 mm; | Coolant tank capacity: 100 L.; Hydraulic oil tank capacity: 20 L.; | Main engine power: 2 HP; | Hydraulic pump motor power: 1.5 HP; | Cooling pump motor power: 0.1 HP; | Electric voltage: 380 V; | Frequency: 50 Hz; | Year of construction: 2000; | Net weight: 1100 Kg; | Dimensions of clearance: L = 2000 xl = 2200 x H = 2300 mm; Tag: SAWING MACHINES, USED |
Metalmacchine 2 s.r.l Via Caduti per la Libertà 4/D40050 Monte San Pietro, BolognaItaly SHOW | |
