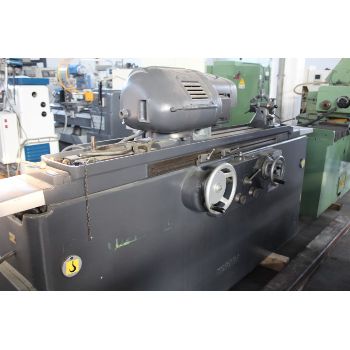

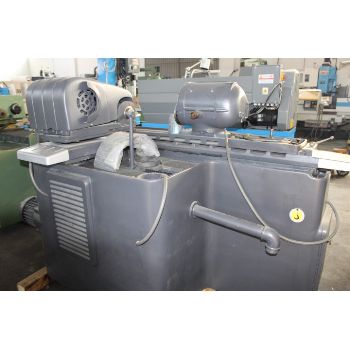

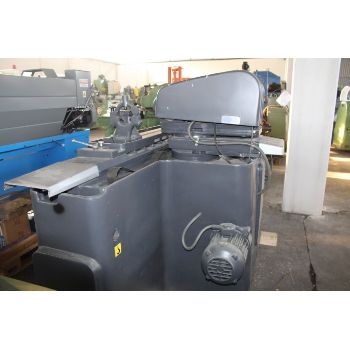

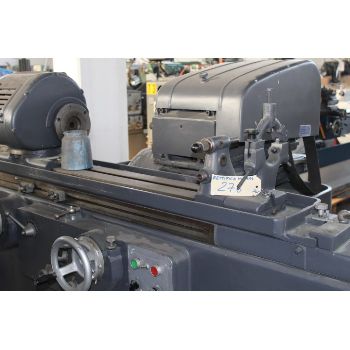

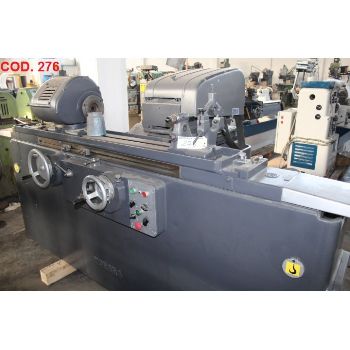

CODE 276 HYDRAULIC INTERNAL GRINDING MACHINE MORARA MOD RI / S.850
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy | Monte San Pietro | Emilia Romagna |
| Category: | Further Machine Tools |
| Manufacturer: | Morara |
| Model: | RI/S.850 |
| Description: | CODE 276 | HYDRAULIC INTERIOR GRINDING MORTAR MOD. RI / S.850 | Model: RI / S.850; | Distance between the piece holder head plate and the spindle support: 875 mm; mm. | Maximum travel of the wheel-holding trolley with screw movement: 50 mm; | Maximum travel of the upper wheel-carrying carriage (by hand): 180 mm; | Maximum rectifiable diameter: 150 mm; | Minimum rectifiable diameter with belt spindles (35,000 rpm): 10 mm. | | Minimum rectifiable diameter with high frequency spindles: 3 mm; | Maximum rotating diameter with protective cover: 250 mm; | Maximum table speed at 1: 6 mt. ; | Minimum table speed at 1: 0.15 m; | Maximum and minimum speed of the work piece head with hydraulic control revolutions at 1: N.130-550; | Head speed with electric control rpm at 1: 75-115 -150-225-310-410-615-820; | Minimum feed of the wheel-carrying cart (for each complete table inversion): 0.002 mm; | Maximum speed of the wheel-carrying cart (for each in full table version): 0,02 mm. | | Piece holder he |
