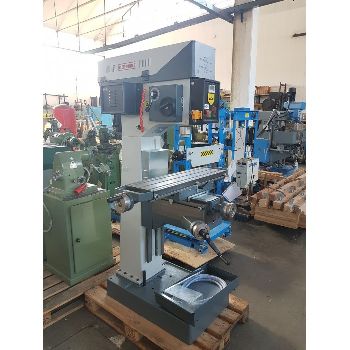

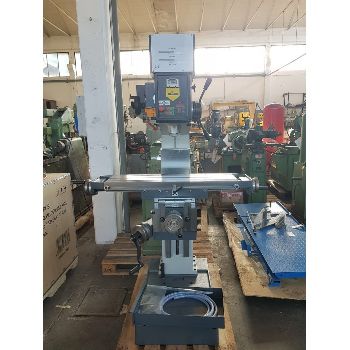

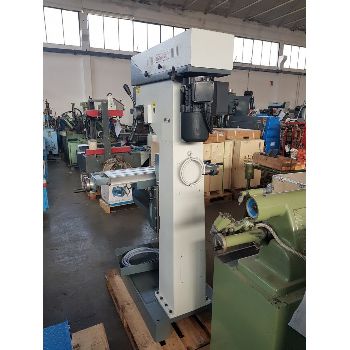

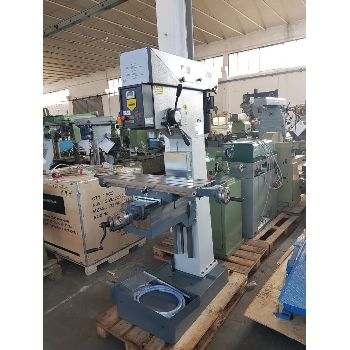

CODE 1485 NEW ELECTRONIC DRILL TRAP MOD TCP40 VE-1-C WITH ELECTRONIC SPEED VARIATOR BY INVERTER WITH ONE BELT CHANGE.
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy | Monte San Pietro | Emilia Romagna |
| Category: | Further Machine Tools |
| Manufacturer: | Solo |
| Model: | TCP40 VE-1-C |
| Year of Make: | 2019 |
| Description: | CODE 1485 | NEW ELECTRIC DRILL CUTTER MODTCP40 VE-1-C WITH ELECTRONIC SPEED VARIATOR BY INVERTER WITH ONE BELT CHANGE | Model: TCP40 VE-1-C; | Conical mandrel in tempered steel: 4 CM; | hardened: | 72 mm; | Stroke Dinghy: 135 mm; | Automatic lowering chuck sleeve: 0,05-0,15-0,2 mm / v; | Max. drilling speed for steel R = 40Kg / mm2: 40 mm; | Max. tapping on steel: 24 mm; | Motor power: 2.2 KW; | Exchange rate with inverter with belt change: 50-1000,130-2500 g / 1 ;| Distance center-spindle GP column: 300 mm; | Max. Distance between table and mandrel G.P .: 750 mm; | Dimensions of cross table with inclination 45/45: 260x890 mm; | Dimensions of T-slot: 14 mm; | Distance between the three T-slots: 80 mm; | Longitudinal stroke table a cross: 600mm; | Cross stroke cross table: 235mm; | Base: 900x570 mm; | Dimensions (Width x Height xDepth): 1340x2000x1250 mm; | Weight app .: 750 Kg; | Year of construction: 2019; | Machine CE; | Including use and maintenance manuals; | Standard Accessories | |
