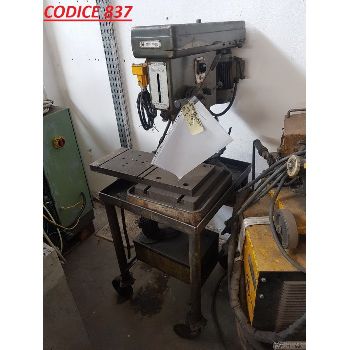

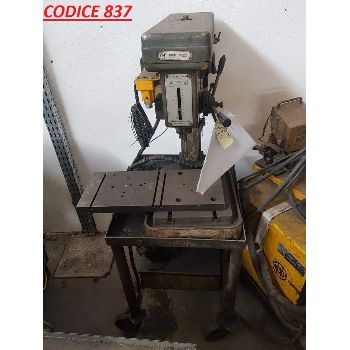

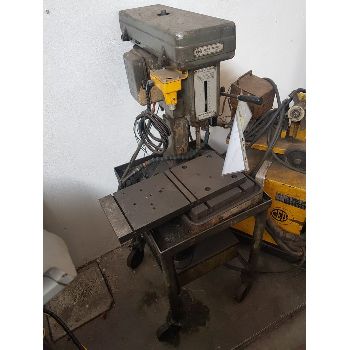

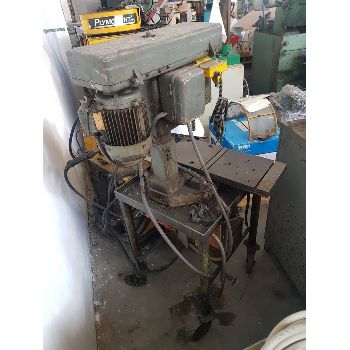

CODE 837 TAPPING DRILL IM MOD IMM 118 WITH BASE AND REFRIGERATION SYSTEM
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy | Monte San Pietro | Emilia Romagna |
| Category: | Further Machine Tools |
| Model: | TR01/200 |
| Description: | CODE 837 | IM MOD IMMAPER TAPPING DEV 118CON BASEMENT AND REFRIGERATION SYSTEM | TECHNICAL DATA | Drilling capacity 40 daN / mm2 steel: 18mm; | Steel tapping capacity 40 daN / mm2: 12x1.5 M; | Mandrel connection: 2 CM / MT ; | Spindle travel: 100 mm; | Vertical travel of the head: 170 mm; Spindle speed: 4 n. | Spindle revolutions: 230-530-1.100-2.410rpm; 530 rpm; | Column diameter: | 90 mm; | Maximum distance between spindle and plane: 395 mm; | Minimum distance between spindle and plane: 225 mm; | Useful distance between column and spindle: 185 mm; | Working table dimensions : 315x340 mm; | Grooves a & lt; & gt; full speed: 2 14 DIN 650 No.; | Wheelbase between the slots at & lt; & gt;: 180 mm; | 2-speed motor | Three-phase HP 1.0 motor for IM118; | Overall dimensions: L = 400 xl = 800 xH = 800 mm; | Overall dimensions with base: L = 400 xl = 800 x H = 1700 mm; Net weight: 110 Kg; Net weight with base: 160 Kg; | -Doback precision combined machine. | -Head adjustable, height adjustable |
