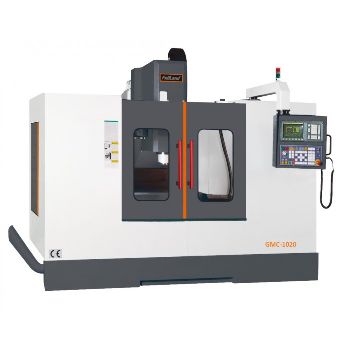

CODE 924 NEW MACHINING CENTER MOD GMC-1020 Y AXIS 2 GUIDES
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy | Monte San Pietro | Emilia Romagna |
| Category: | Machining Centers |
| Manufacturer: | Europa |
| Model: | EUROPA 5 /40 |
| Description: | CODE 924 | NEW MACHINING CENTER MOD GMC-1020 Y AXIS 2 GUIDES | MODEL UNIT GMC-1020 | Travel axis XYZ | Axes XYZ travel mm 1020x530x610 | Spindle nose to table surface | Distance between spindle nose and table mm | 100-710 | Spindle center to column surface | Distance between spindle center and column surface mm 550 | XYZ axis ball screw dia | XYZ axes with Ball screws mm 40 x 12 | Table size | Table size mm | 1120 x 510 | Working area | Area working width mm | 1020 x 500 | Tee Slots (CDxWxNo.) | Grooves mm CD 100x18x4 | Max. Table Load | Maximum table load Kg. 600 | Spindle tapper | Spindle BT40 / ISO40 / CAT40 | Belt drive | Spindle speed with standard belt BT40: 10000 | Direct drive | Spindle speed with direct motor option | Turns / min BT40 / HSK63A: | 10000/12000/15000/18000 | BT50 / HSK100A: 8000/10000/12000 | Built in drive Rpm / min BT40 / HSK63A: 18000/24000/30000 | BT50 / HSK100A: 8000/10000/12000 | Cutting Feed Rate | Working speed mm / min 1-10.000 | (depending on the contro |
