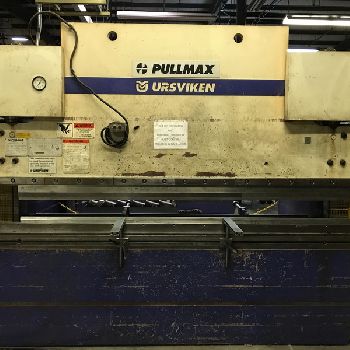

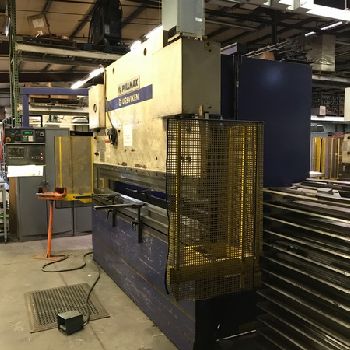

Pullmax Optima 100/10 1999
$ 49,500
| Type: | Buy-It-Now |
| Location: | United States | Chicago |
| Category: | Misc |
| Manufacturer: | Pullmax |
| Model: | Optima 100/10 |
| Year of Make: | 1999 |

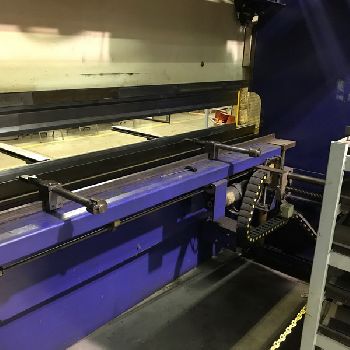

| Description: | CYBELEC DNC800 MULTI AXIS CNC CONTROL,CNC BACK GAUGE #2 W/ CLOSED LOOP DC SERVO,CONTROL,CNC CROWNING SYSTEM,40” FRONT SUPPORT ARM,SAFETY LIGHT GUARD,20” FRONT SUPPORT WIT T-SLOT (PAIR), |
| Technical Specifications: | REFERENCE: #1800074 CAPACITY: 110 Tons OVERALL LENGTH OF BED & RAM: 122” DISTANCE BETWEEN HOUSINGS: 100” OPEN HEIGHT: 15.7” STROKE: 7.9” SHUT HEIGHT (SDAU): 7.8 THROAT: 7.9” WORKING HEIGHT: 37” BED WIDTH: 4.8” AXIS: Y1 / Y2 / X / R X-AXIS PROGRAMABLE RANGE: 20" X-AXIS MAX USABLE RANGE: 40” R-AXIS PROGRAMMABLE RANGE: 8 OIL CAPACITY: 34 US Gallons RAPID APPROACH: 240 IPM PRESS: 43 IPM RETURN: 283 IPM MAX PROGRAMMABLE TILT: +/-1.5 MAIN MOTOR HORSEPOWER: 18 ELECTRICS: 460/3/60 34 Amps |
