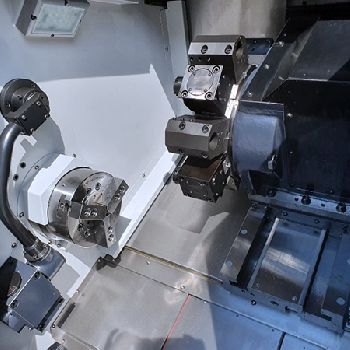

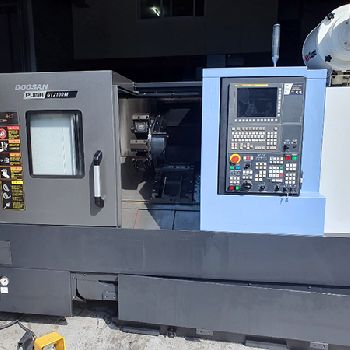

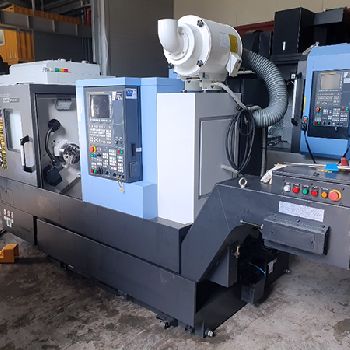

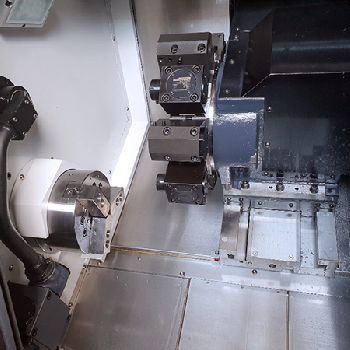

Doosan Puma GT2100M 2018
$ 79,500
| Type: | Buy-It-Now |
| Location: | United States | Chicago |
| Category: | CNC Milling Machines |
| Manufacturer: | Doosan |
| Model: | Puma GT2100M |
| Year of Make: | 2018 |
| Description: | 8” CHUCK,TOOL PRESETTER,STRAIGHT AND ANGULAR MILLING HOLDERS,CHIP CONVEYOR,MIST COLLECTOR,FANUC CONTROLLER, |
| Technical Specifications: | REFERENCE: #3184654 SWING OVER BED: 23.6 SWING OVER SADDLE: 15.4" RECOMMANDED TURNING DIA.: 8.3 MAX TURNING DIAMETER: 11.8 MAX TURNING LENGTH: 20.2 SPINDLE BEARING DIAMETER: 4.3 (Front) SPINDLE NOSE: ASA A2-6 SPINDLE TORQUE: 231 SPINDLE SPEED: 4500 RPM TRAVEL DISTANCE X-AXIS: 9.1 TRAVEL DISTANCE Z-AXIS: 22.8 FEEDRATES RAPID TRAVERSE X-AXIS: 945 IPM FEEDRATES RAPID TRAVERSE Z-AXIS: 1181 IPM BAR WORKING DIAMETER: 2.6 CHUCK SIZE: 8 SPINDLE THROUGH HOLE: 3.0 MIN. SPINDLE INDEXING ANGLE (C-AXIS) DEG: 0.001 - 0.001 TURRET NO. OF TOOL STATIONS EA: 12 OD TOOL SIZE: 1 x 1 MAX. BORING BAR SIZE: 1.6 TURRET INDEXING TIME (1 STATION SWIVEL: 0.15 sec. MAX. ROTARY TOOL SPEED R/MIN: 5000 ROTARY TOOL MOTOR POWER KW (HP): 7.4 TAILSTOCK TAILSTOCK TRAVEL: 22.8 QUILL DIAMETER: 3.1 QUILL TRAVEL: 3.1 QUILL BORE TAPER: MT#4 ELECTRIC POWER SUPPLY (RATED CAPACITY) KVA: 30.43 CONTROL NC SYSTEM: DOOSAN-FANUC i |
