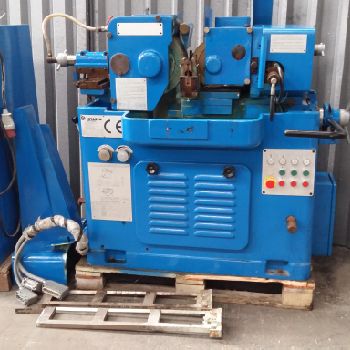

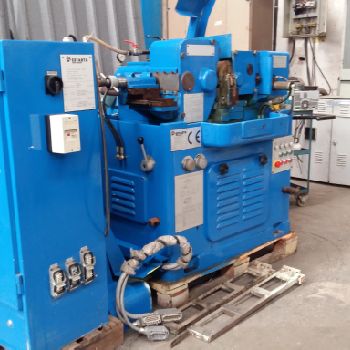

Estarta - Encenarro 301 Cylindrical centreless grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Centerless Grinders |
| Manufacturer: | Estarta |
| Model: | 301 |
| Year of Make: | 1998 |
| Description: | ESTARTA y ENCENARRO mod. 301 Centreless Grinding Machine |Perfect condition, it has only worked 6 months Year 1.998|Capacity: |Grinding diameter: Min. 1.5 mm Max. 50 mm. |Max length of the cut-in grinding: 125 mm|Grinding wheel: |Diameters: Ext. 300 mm Int. 175 mm. |Width: 125 mm. |R.P.M. Speed: 1.900 r.p.m. |Motor power: 10 HP.|Feeding wheel: |Diameters: Ext. 220 mm Int. 125 mm. |Width: 125 mm. |5 wheel speeds: 22-35-58-90-333 r.p.m. |Motor power: 0.75 HP.|Hydraulic system: |Pump motor power: 0.25 HP |Normal operating pressure: 2 kg/cm2|Cooling system: |Pump flow: 40 l/min. |Tank capacity: 170 l. |Motor power: 0.20 HP|Dimensions and weight |Width 1.535 mm Height 1.230 mm. Depth 850 mm. |Net weight: 1.600 kg.|FILBER mod. JUMA Separator-filtering equipment |Tank capacity: 230 l. |Filtering capacity: 60 l/min. |Gear motor power: 0.12 HP. |Dimensions: Length 1.500 mm Width 570 mm. Height 300 mm. |
| Technical Specifications: | Distance between centers: 125.0 mm Max. length of workpiece: 125.0 mm CNC: No Type of CNC: - Grinding wheel diameter: 300.0 mm Grinding wheel width: 125.0 mm Grinding wheel speed: 1900 rpm Length x width x height: - × - × - Weight: - State: good At local norms: yes |
