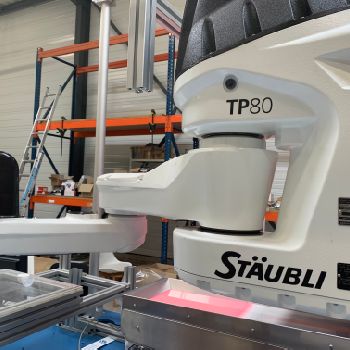

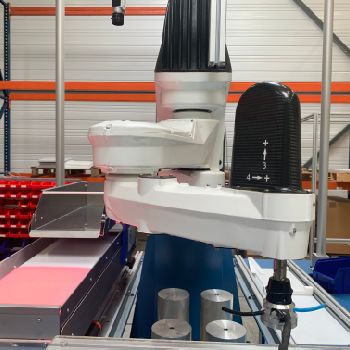

Staubli TP 80 Industrial Robot Like NEW
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Robots |
| Manufacturer: | Stäubli |
| Model: | TP 80 |
| Year of Make: | 2015 |
| Description: | This robot comes from our showroom, it was only used to make demos. |Anne: 2015 /08 |Fast picker Up to 200 Hits Per MINUTE |Axis stroke: 100 mm |Load in KG: from 0.5 to 1 Kg|-> Picker industrial robot arm (4 axes) |- Working radius: 800 mm |- Protection class: IP54 |- Absolute encoders |- With mechanical interface (flange) for gripper |- Possibility to attach an additional load to the forearm |- Electrical pre-wiring: 4 pairs 0.21 mm shielded |- Pneumatic pre-wiring: 1 x diameter 4/6 mm, 1 x diameter 6/8 mm |- Axis 3: - Stroke 100 mm |- Ball screw diam.20 mm (outside) / diam.14 mm (inside) |- Painting: RAL 9016, smooth appearance (arms) - RAL7055 (covers) |- Standard environment |- Mounting: console |- Pack of 2 2/2 monostable solenoid valves (1 with output 4/6 - 1 with 2 outputs 4/6) |- User pre-wiring axes 3-4 (up and down): pneumatic and electrical user interface between the forearm and the |robot flange (through the Z axis): |- 3 pneumatic cables diameter 4/6 |

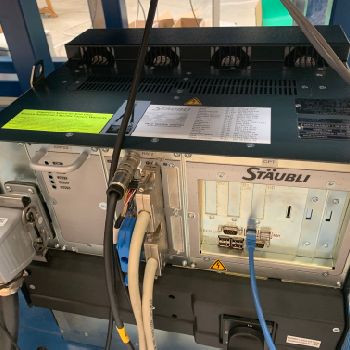

| Technical Specifications: | Application type: Handling Number of axis: 4.0 Reach in mm: 800.0 mm Payload in kgs: 1.0 kg Control type: CS8C Treated against heat: No Treated for Clean room: No Length x width x height: 445.0 mm × 455.0 mm × 480.0 mm Weight: 58.0 kg Hours under power: 828 hours State: like new At local norms: yes Status: under power |
