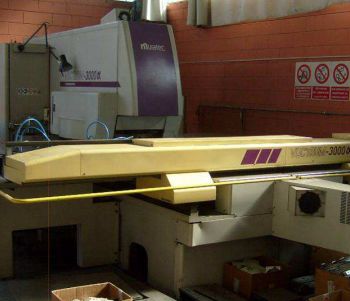

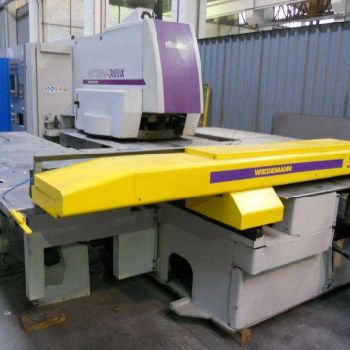

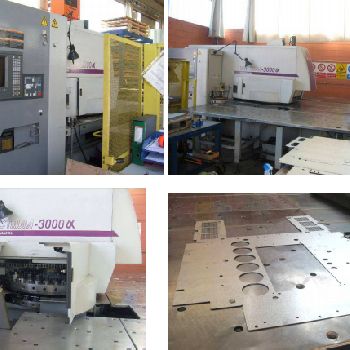

Muratec-Wiedemann VECTRUM 3046 ALPHA CNC punching machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Punching Machines |
| Manufacturer: | AlphaCNC |
| Model: | VECTRUM 3046 ALPHA |
| Year of Make: | 1998 |
| Description: | Working area / Working area 1250x2000 mm |REPOSITIONABLE |Working power / Working strenght ton 30 |Control / Control type / type FANUC MOD. 16-P |Stations / Turret stations N. 44 (4 INDEX) |Max n. strokes / Max strokes number N./min 1000 |Maximum thickness / Max thickness mm 6.35 |Programmable punch stroke / Adjustable punch stroke mm -6 / +27.3 |Ram speed / Ram speed mm / sec 50-600 |Upper matrix-tower distance / Die-upper turret |distance mm 22.3 |Year / Production year 1998 |
| Technical Specifications: | Power in tons: 30 T Metal length: 1525.0 mm CNC type: FANUC MOD. 16-P Metal width: 1350.0 mm Max. Weight of the workpiece: 150.0 kg Number of tools: 44.0 Length x width x height: 5900.0 mm × 4200.0 mm × 2500.0 mm Weight: 15500.0 kg State: good At local norms: --------- |
